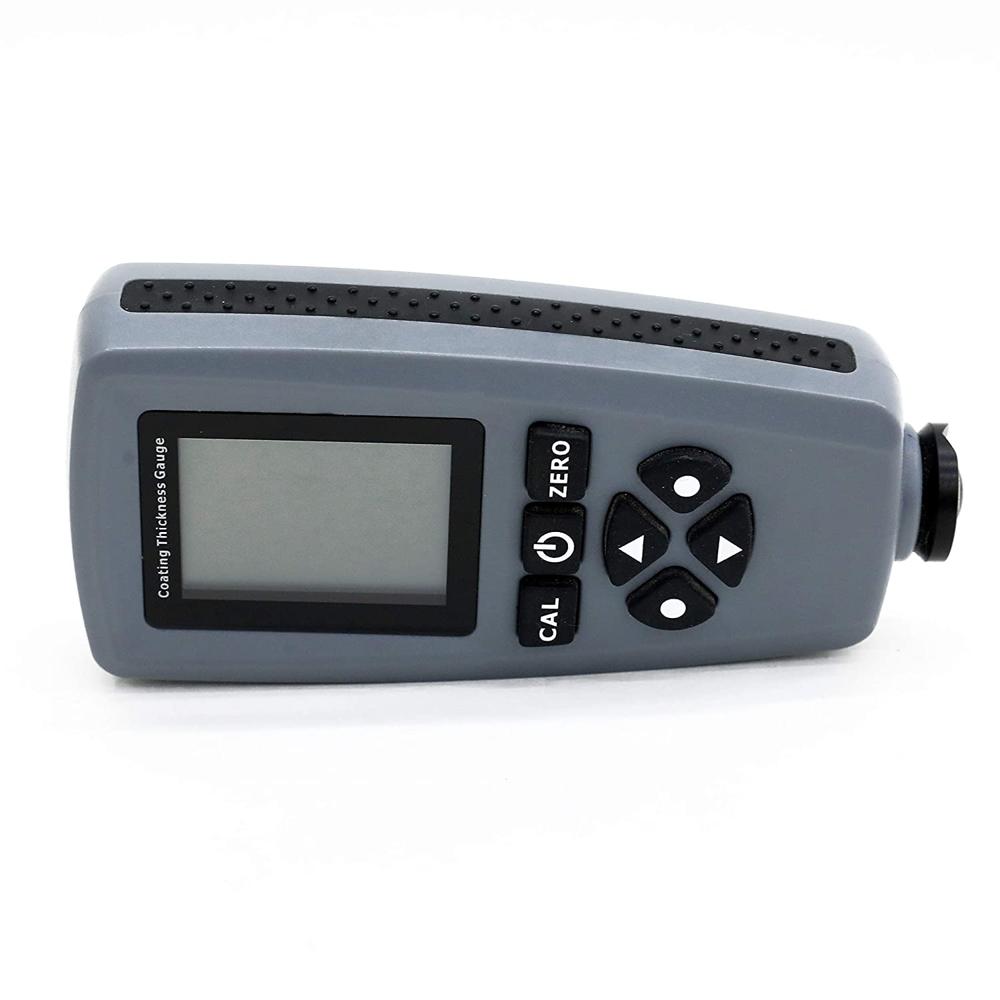

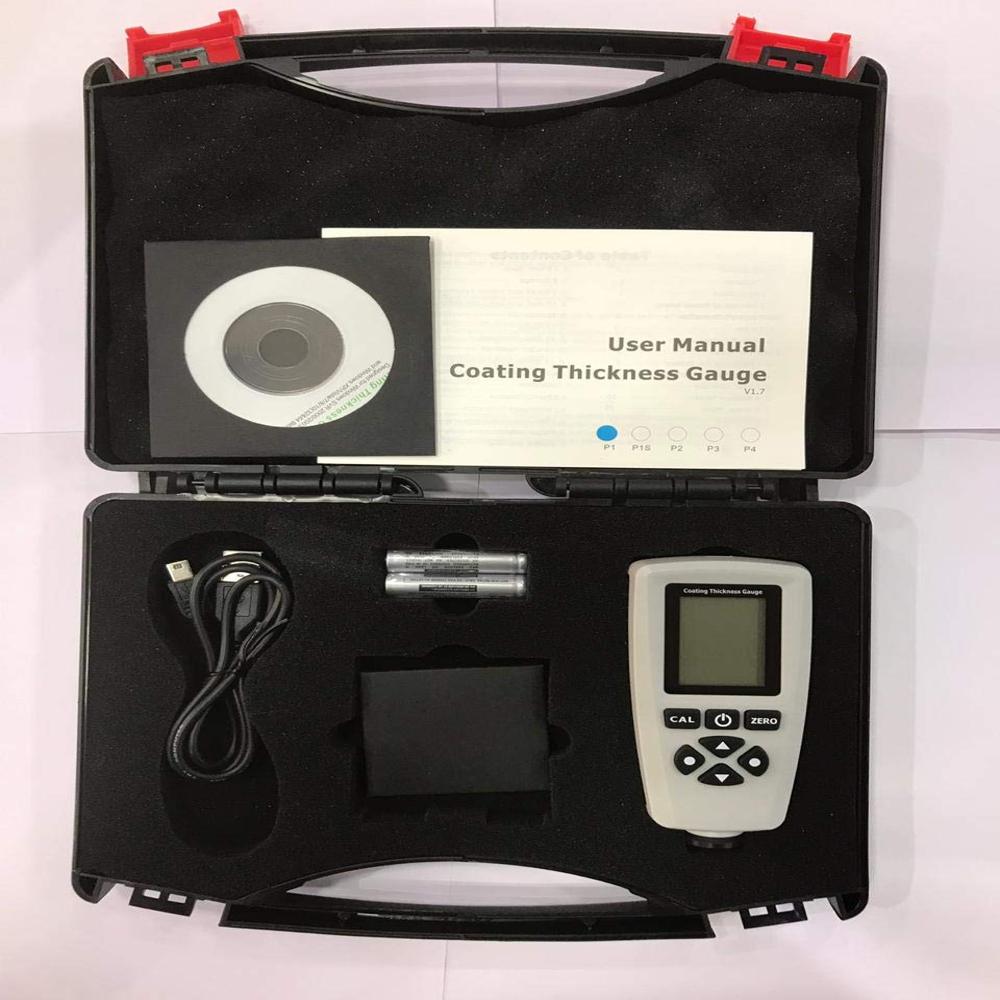

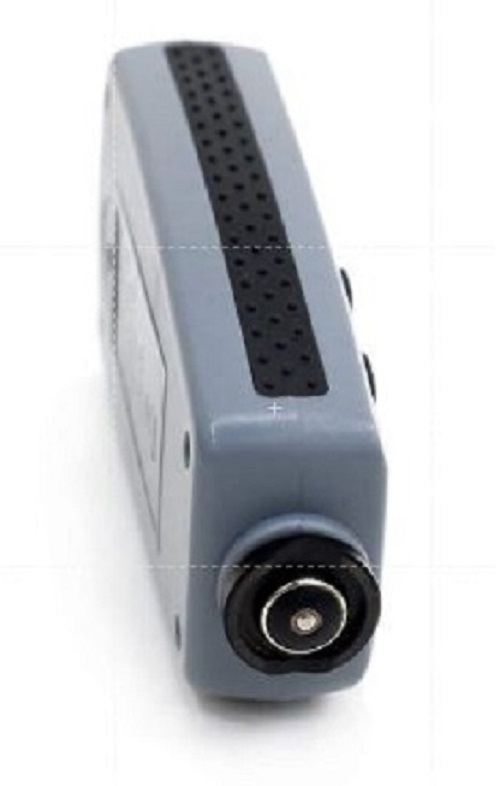

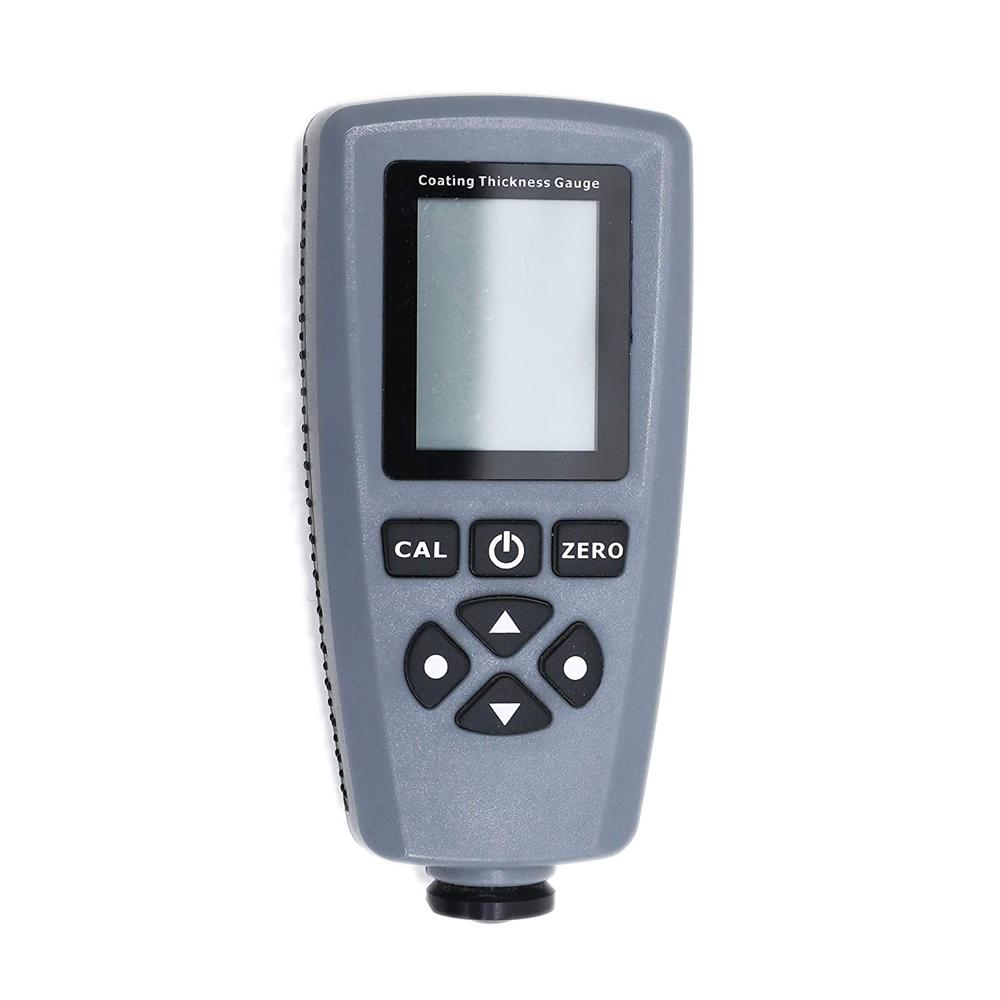

COATING THICKNESS GAUGE WITH MEASURING RANGE 2000 MICRON

About COATING THICKNESS GAUGE WITH MEASURING RANGE 2000 MICRON

DESCRIPTIONS: These gauges can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.

APPLICATIONS: coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.

FUNCTIONS/FEATURES:
 Range 0~2000um, accuracy 2.5%1um   128*128dots LCD display ??? Menu interface
 Red LED alarm indication
 LCD shows mean, maximum, minimum and standard deviation
 User can set alarm limit
 Readings can be stored, recalled and deleted
 Easy to do zero calibration and support multi-point calibration
 Connect with PC via USB and download readings
 Automatically detect the substrates type(F or N)
 Unit optional: um, mm and mils
