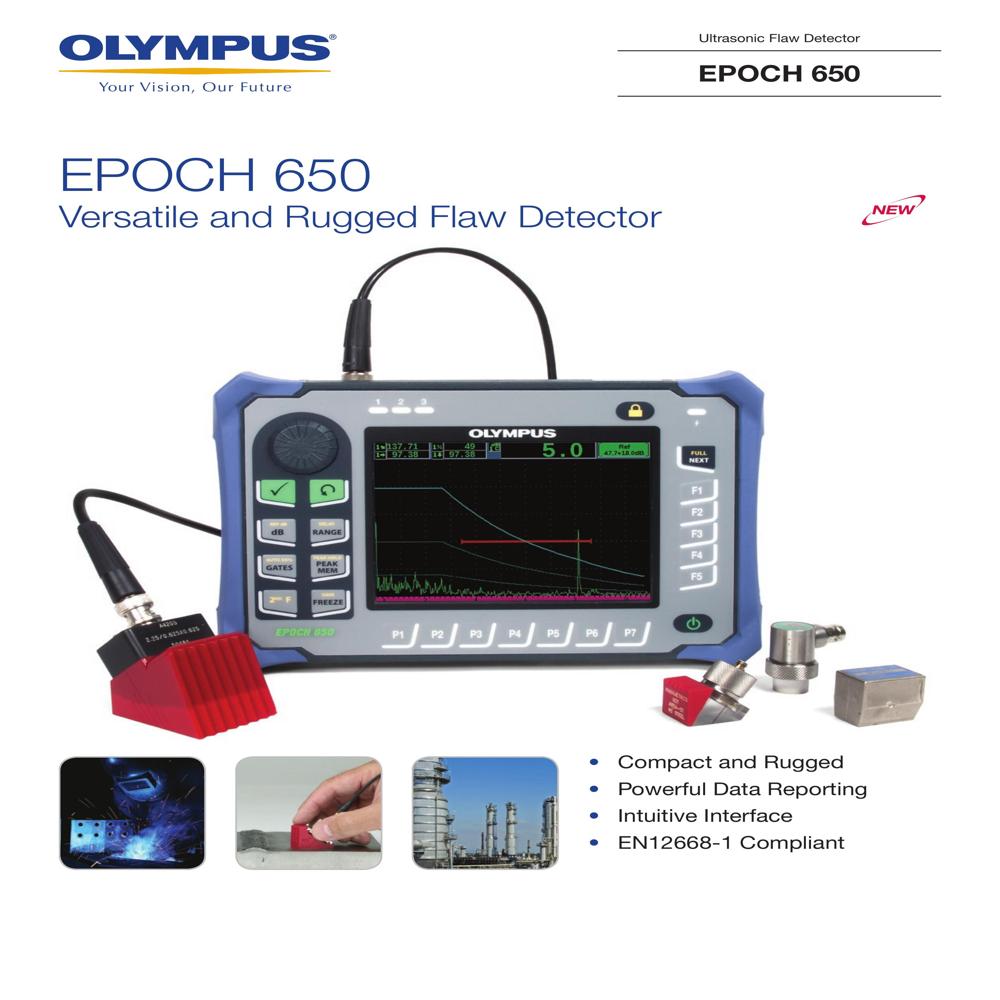

EPOCH 650 Ultrasonic Flaw Detector

About EPOCH 650 Ultrasonic Flaw Detector

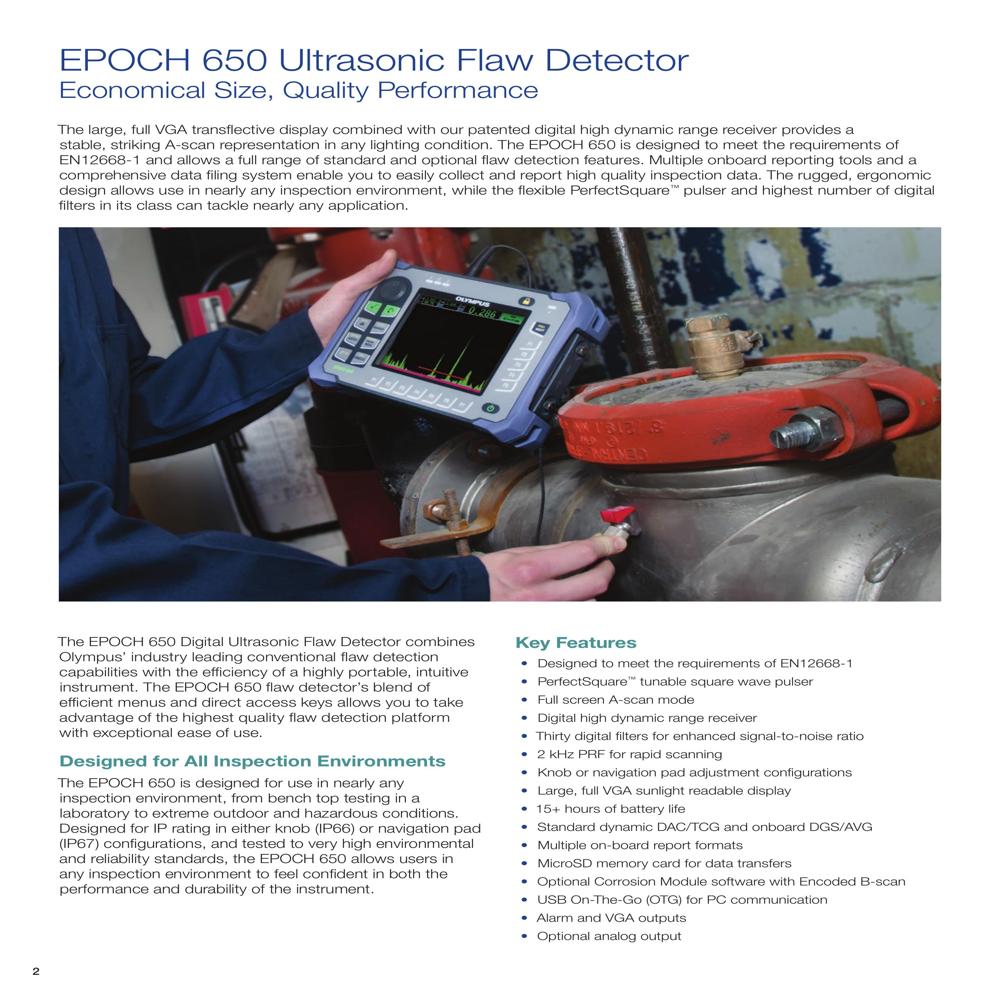

The large, full VGA transflective display combined with our patented digital high dynamic range receiver provides a stable, striking A-scan representation in any lighting condition. The EPOCH 650 is designed to meet the requirements of EN12668-1 and allows a full range of standard and optional flaw detection features. Multiple onboard reporting tools and a comprehensive data filing system enable you to easily collect and report high quality inspection data. The rugged, ergonomic design allows use in nearly any inspection environment, while the flexible PerfectSquare pulser and highest number of digital filters in its class can tackle nearly any application.
The EPOCH 650 Digital Ultrasonic Flaw Detector combines Olympus industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 650 flaw detectors blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use
Designed for All Inspection Environments The EPOCH 650 is designed for use in nearly any inspection environment, from bench top testing in a laboratory to extreme outdoor and hazardous conditions. Designed for IP rating in either knob (IP66) or navigation pad (IP67) configurations, and tested to very high environmental and reliability standards, the EPOCH 650 allows users in any inspection environment to feel confident in both the performance and durability of the instrument
key Features
Designed to meet the requirements of EN12668-1
PerfectSquare tunable square wave pulser
Full screen A-scan mode
Digital high dynamic range receiver
Thirty digital filters for enhanced signal-to-noise ratio

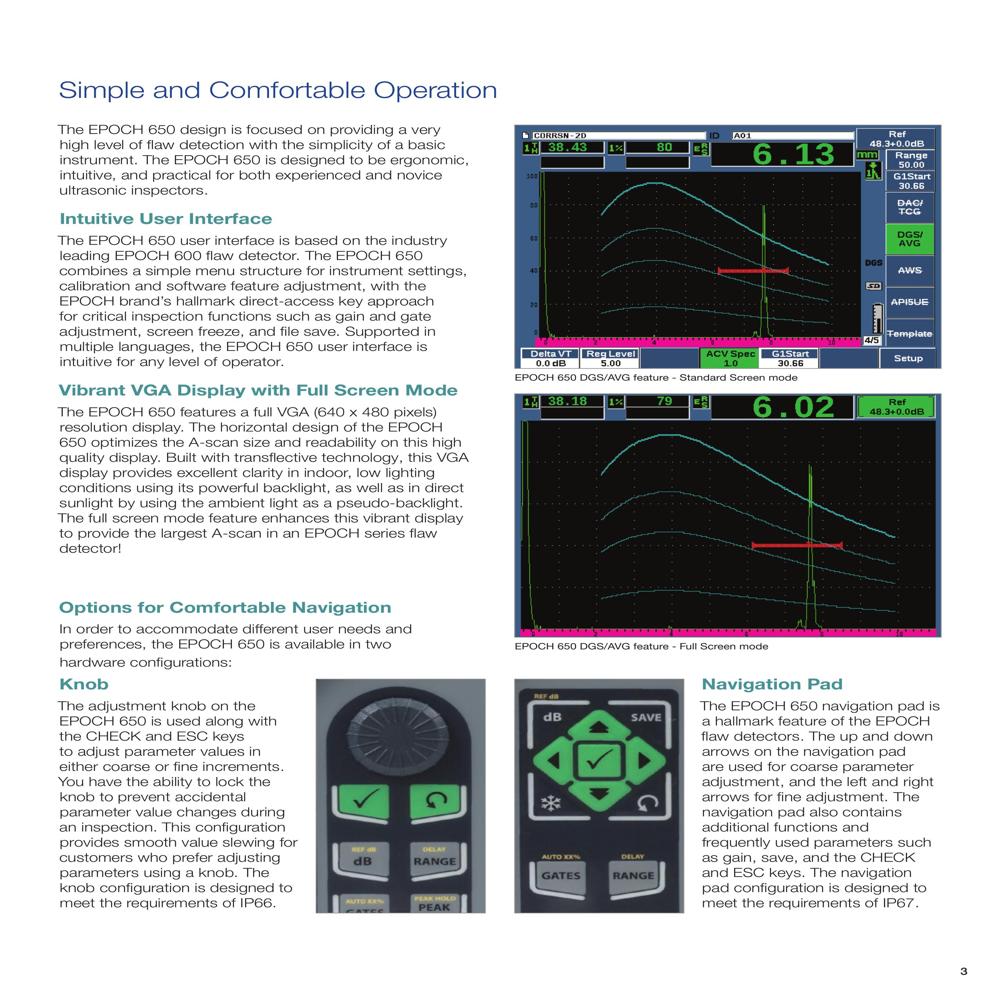

2 kHz PRF for rapid scanning Knob or navigation pad adjustment configurations
Large, full VGA sunlight readable display
15+ hours of battery life

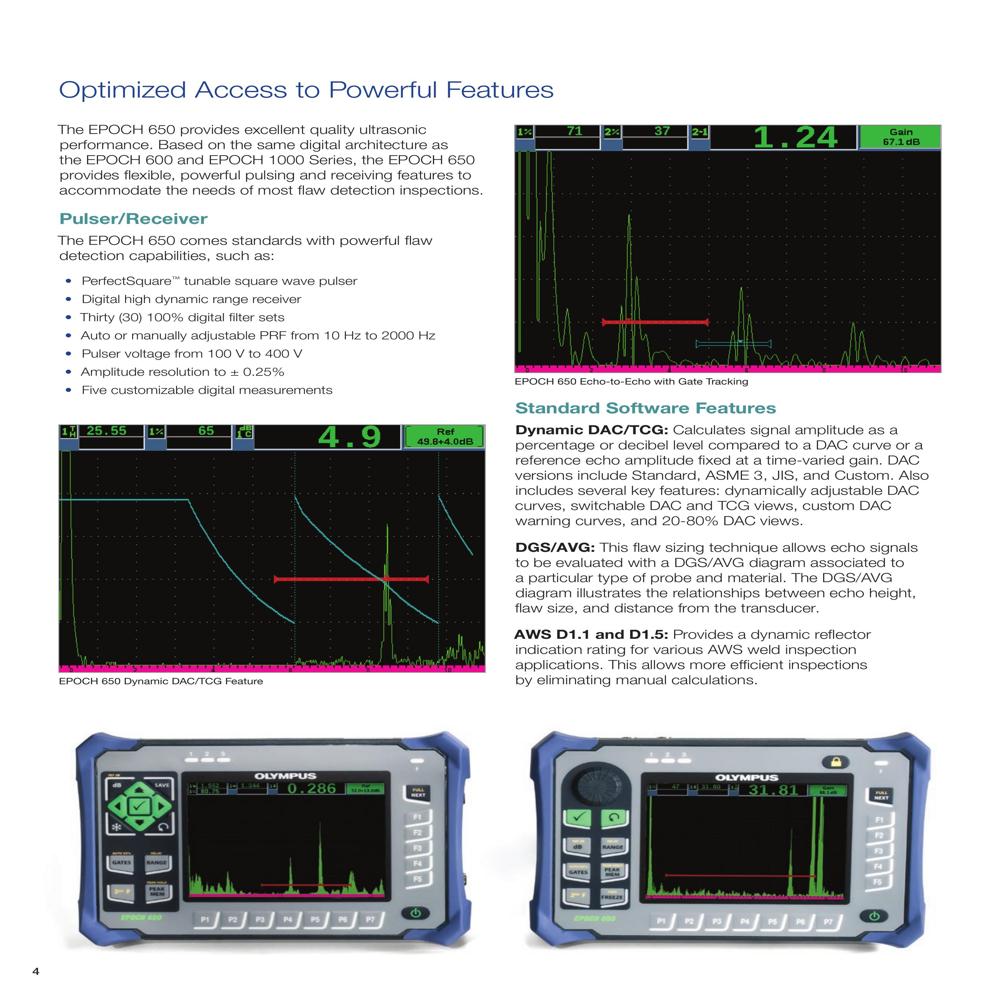

Standard dynamic DAC/TCG and onboard DGS/AVG
Multiple on-board report formats
MicroSD memory card for data transfers

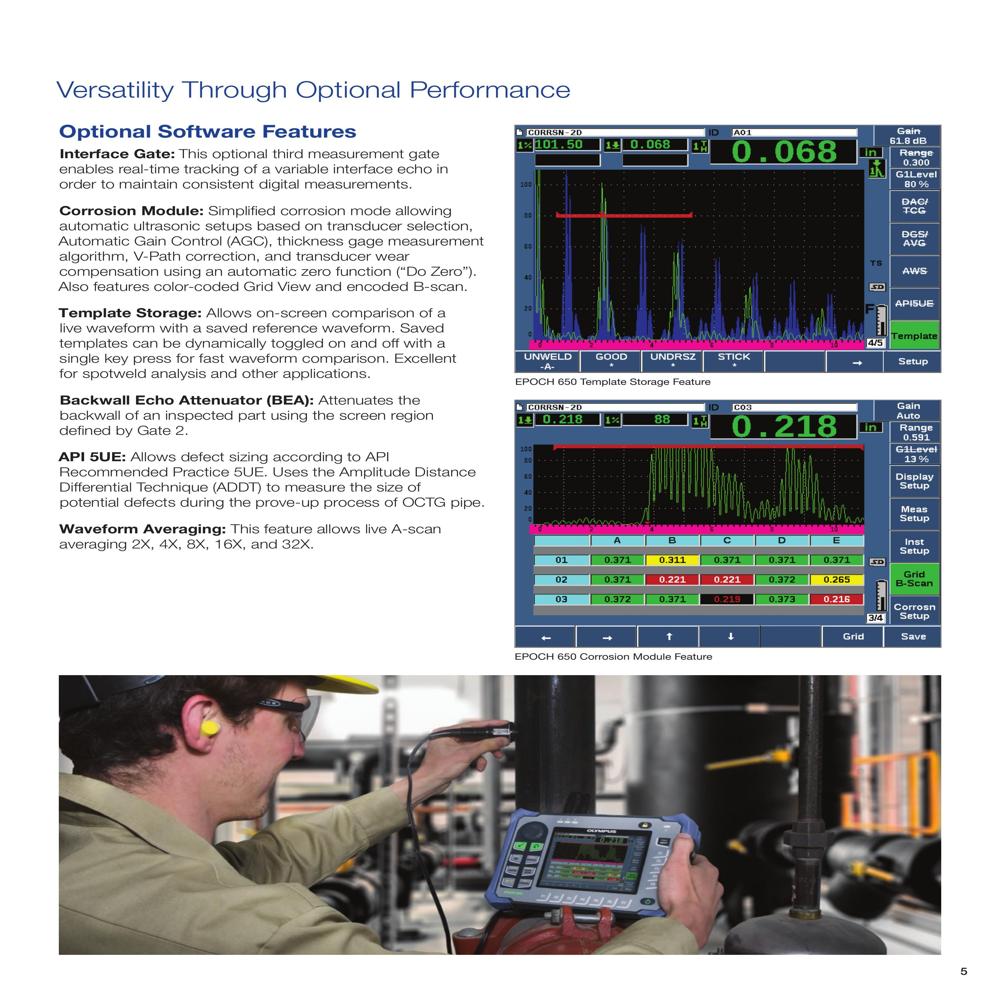

Optional Corrosion Module software with Encoded B-scan
USB On-The-Go (OTG) for PC communication
Alarm and VGA outputs
Optional analog output
