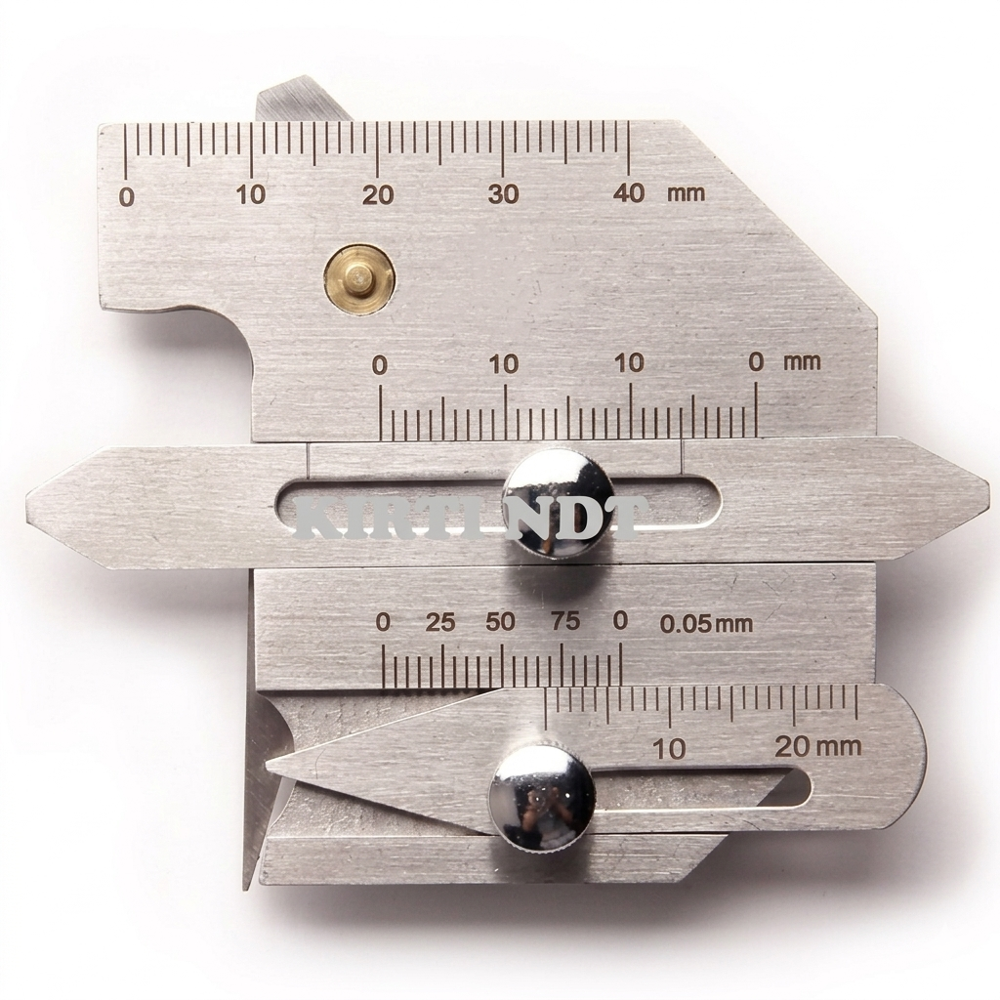

Universal Welding Gauge HJC40/HJC60

Name: Universal Welding Gauge HJC40/HJC60
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 1400.0 INR
Availability: InStock

Price 1400.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Universal Welding Gauge HJC40/HJC60 Specification

Outer Size
125 x 55 x 7 mm (approx.)

Case
Protective hard case included

Thread
N/A (Solid gauge, not threaded)

Display
Etched graduations, analog readout

Measuring Range
0-60 mm (HJC60), 0-40 mm (HJC40)

Sensor Type
Non-electronic, mechanical gauge

Material
Stainless steel body

Grade
Industrial

Application
Inspection and measurement of welds (fillet and butt welds, undercuts, misalignments, reinforcement, etc.)

Accuracy
0.1 mm

Included Accessories
Calibration test certificate, hard carry case

Operation
Manual, portable, field and workshop use

Standards Compliance
Conforms to international welding inspection requirements

Readout Units
Millimeter and inch graduations

Measurement Types
Fillet weld throat and leg, butt weld reinforcement, weld size, angular distortion, misalignment

Finish
Satin chrome plated for corrosion resistance

Scale Type
Laser-etched, wear resistant

Weight
Approx. 250 grams

Universal Welding Gauge HJC40/HJC60 Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Universal Welding Gauge HJC40/HJC60

Matching up with the ever increasing requirements of the customers, our company is engaged in providing universal welding gauge.

other details:

the gauge consists of main scale, height gauge, undercut depth gauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of amendments, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.
it is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application
two type: hjc-40a & hjc-60

Versatile Measurement Capabilities

The Universal Welding Gauge HJC40/HJC60 covers a comprehensive array of weld-related measurements, including fillet weld throat and leg sizes, butt weld reinforcement, and detection of angular distortion or misalignment. Its dual-unit scale and analog interface provide clear, precise results in both millimeters and inches, making it adaptable for diverse users and settings.

Industrial-Grade Construction

Built with a stainless steel body and a satin chrome plated finish, this gauge resists corrosion and maintains reliability even under demanding industrial conditions. The laser-etched graduations are wear-resistant, ensuring measurement accuracy and readability are preserved over time, even with frequent field or workshop use.

Manual, Portable, and Simple to Operate

This non-electronic, mechanical gauge works without batteries or power, allowing for purely manual operation. Its compact size and solid build make it highly portable, while the included hard case ensures protection during transport or storage. It's well-suited for weld inspection professionals working on-site or in fabrication facilities.

FAQ's of Universal Welding Gauge HJC40/HJC60:

Q: How do I use the Universal Welding Gauge HJC40/HJC60 for weld inspection?

A: Position the gauge against the weld area, aligning the relevant measurement points (throat, leg, or reinforcement) with the workpiece. Slide the scale to capture the required dimension, and read the result from the laser-etched graduations, available in both millimeters and inches. The process remains manual and straightforward, offering immediate, accurate readings.

Q: What types of weld measurements can this gauge perform?

A: The HJC40/HJC60 is designed to measure fillet weld throat and leg lengths, butt weld reinforcement, overall weld size, angular distortion, and misalignment. This versatility supports comprehensive inspection of both fillet and butt welds, as well as detection of undercuts and other critical welding variables.

Q: Where can I use the Universal Welding Gauge HJC40/HJC60?

A: Thanks to its robust, portable design and protective hard case, this gauge is ideal for field inspections as well as workshop and fabrication facility measurements. Its mechanical, non-electronic operation makes it practical for almost any setting without dependence on external power sources.

Q: What is the measurement range and accuracy of the HJC40 and HJC60 models?

A: The HJC40 offers a measuring range of 0-40 mm, while the HJC60 extends up to 0-60 mm. Both models deliver a high degree of accuracy, up to 0.1 mm, suitable for demanding industrial and welding standards.

Q: Are calibration and compliance assured with this gauge?

A: Yes, each Universal Welding Gauge is supplied with a calibration test certificate to verify accuracy. The instrument is manufactured in accordance with international welding inspection requirements, ensuring reliable and standard-compliant measurements.

Q: What are the benefits of the satin chrome plated finish and laser-etched graduations?

A: The satin chrome plating enhances corrosion resistance, prolonging the gauge's lifespan in harsh working environments. Laser-etched graduations ensure superior wear resistance and readability, maintaining precision over repeated use.

Q: What accessories are included with the Universal Welding Gauge HJC40/HJC60?

A: Each gauge comes with a calibration certificate and a sturdy hard carry case, offering both assurance of measurement accuracy and convenient transport and storage.
