45mg Ultrasonic Thickness Gauge Olympus

Name: 45mg Ultrasonic Thickness Gauge Olympus
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 250000.0 INR
Availability: InStock

Price 250000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

45mg Ultrasonic Thickness Gauge Olympus Specification

Outer Size
Handheld Portable Unit (Exact dimensions not specified)

Case
Rugged, Designed for IP67

Display
Color Transflective QVGA Display

Sensor Type
Dual Element Ultrasonic Transducer

Measuring Range
Precision Thickness Measurements (exact range not specified in image)

Material
Industrial Grade Plastic/Composite Housing

Grade
Industrial

Application
Corrosion Gaging and Precision Thickness Gaging

Accuracy
High Precision (exact value not specified in image)

Operation
Simple Operation

Special Features
Dual Element for Corrosion, Precision Thickness, Optional Waveform

Environmental Protection
IP67 Rated for Rugged Environments

Power Supply
Battery Powered (exact type not specified)

Waveform Option
Optional Waveform Display

Model
45MG

Interface
Multi-functional Keypad with Direct Access Buttons

45mg Ultrasonic Thickness Gauge Olympus Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About 45mg Ultrasonic Thickness Gauge Olympus

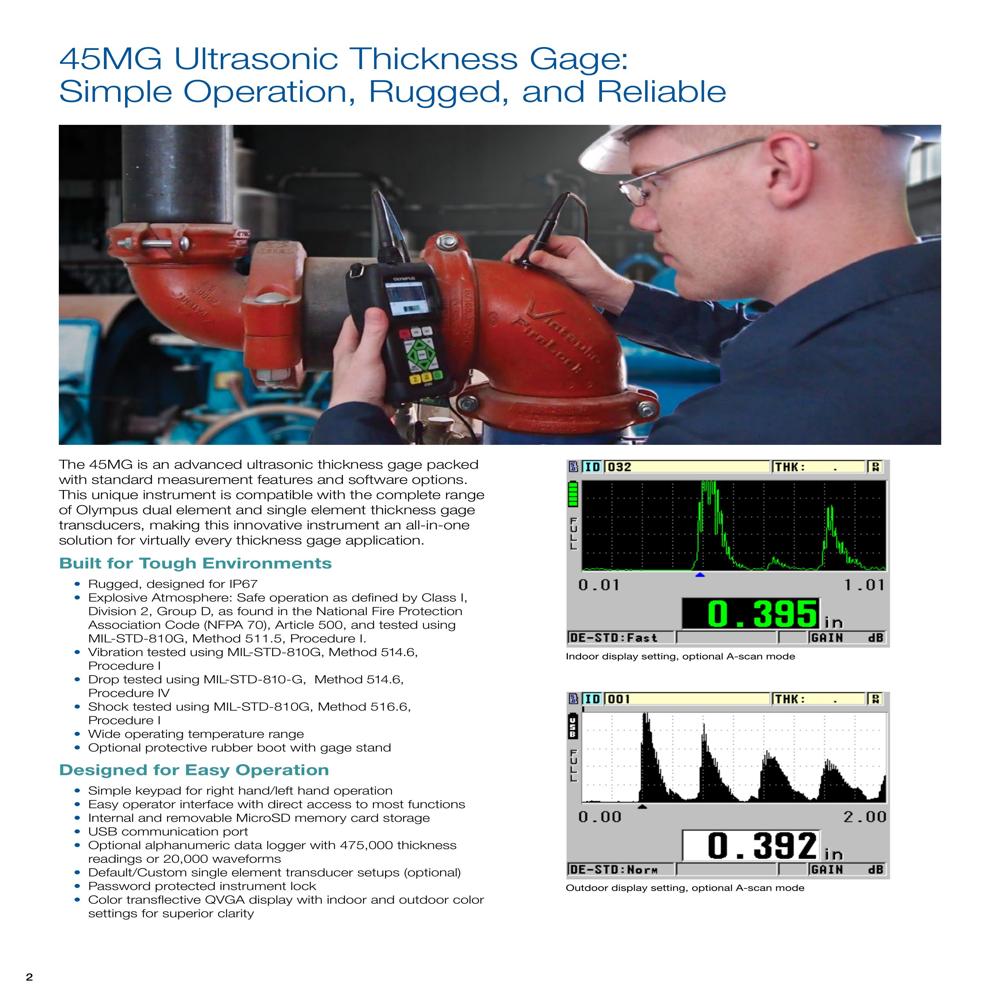

The 45MG advanced ultrasonic thickness gage is packed with standard measurement features and software options. This unique instrument is compatible with the complete range of Olympus dual element and single element thickness gage transducers, making it an all-in-one solution for virtually every thickness gage application. Built for Tough Environments Rugged, designed for IP67 Explosive atmosphere: tested using MIL-STD-810G, Method 511.5, Procedure I Vibration tested using MIL-STD-810G, Method 514.6, Procedure I Drop tested using MIL-STD-810-G, Method 514.6, Procedure IV Shock tested using MIL-STD-810G, Method 516.6, Procedure I Wide operating temperature range Optional protective rubber boot with gage stand Designed for Easy Operation Simple keypad for right hand/left hand operation Easy operator interface with direct access to most functions Internal and removable microSD memory card storage USB communication port Optional alphanumeric data logger with 475,000 thickness readings or 20,000 waveforms Default/Custom single element transducer setups (optional) Password protected instrument lock Color transflective QVGA display with indoor and outdoor color settings for superior clarity

Advanced Thickness Measurement Technology

The Olympus 45MG pairs a dual element transducer with optional waveform display, supporting both corrosion monitoring and precision thickness gaging. This advanced technology enables users to obtain reliable and high-precision measurements in a variety of industrial settings, enhancing quality control and reducing the risk of equipment failure.

Rugged, Portable, and User-Friendly Design

Built for the toughest environments, the 45MG's IP67-rated, industrial-grade housing protects sensitive electronics from dust and water. The ergonomic, handheld form factor and easy-to-use keypad make operation straightforward during fieldwork or plant inspections, ensuring productive, uninterrupted usage.

FAQ's of 45mg Ultrasonic Thickness Gauge Olympus:

Q: How do I operate the Olympus 45MG Ultrasonic Thickness Gauge?

A: Simply power on the device, select the appropriate measurement mode using the multi-functional keypad, and place the dual element transducer on the test surface. The interface offers direct access to all key functions, ensuring efficient navigation and quick setup for accurate readings.

Q: What are the main benefits of choosing the 45MG model for thickness measurement?

A: Key benefits include high precision measurements, the ability to handle both corrosion and precision gaging applications, and suitability for use in challenging industrial environments thanks to its IP67 rugged design and portable size.

Q: Where can this gauge be effectively utilized?

A: The 45MG is ideal for use in industrial sectors like manufacturing, oil and gas, power generation, and marine industries, especially where frequent corrosion monitoring and precise thickness assessments of metals and other materials are required.

Q: What process should I follow for accurate thickness measurements?

A: Ensure the gauge is powered on and properly calibrated for the material being measured. Apply couplant to the probe, place the transducer on the surface, and use the direct access buttons to view measurement data. Optional waveform display can assist in verification for added accuracy.

Q: When is it important to use a dual element ultrasonic gauge like the 45MG?

A: Dual element gauges are essential when measuring materials with significant corrosion or pitting, as they are optimized for accurate readings under such conditions, unlike single element probes.

Q: What type of environments can the 45MG withstand?

A: Thanks to its IP67 rating and robust industrial-grade housing, the 45MG can be used in dust-heavy or wet environments, including field inspections and harsh plant conditions, without risk to performance.
