Ultrasonic Thickness Gauge Probe (10MM-5MHZ)

Send Inquiry

Request To Call Back

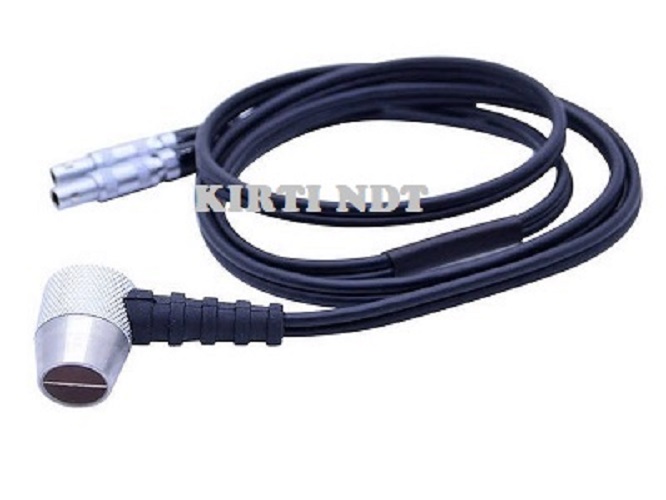

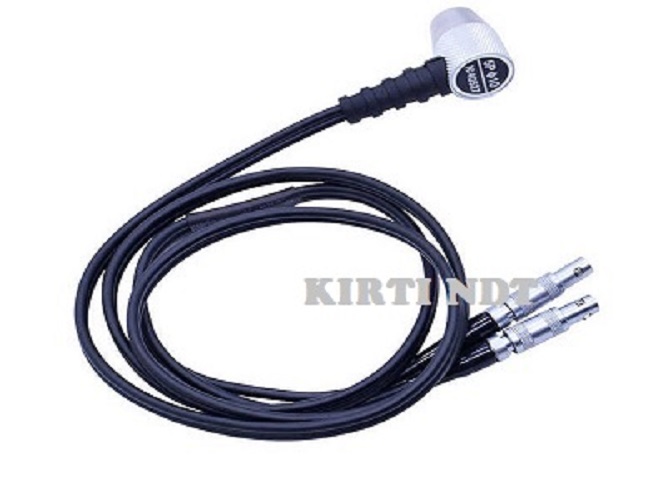

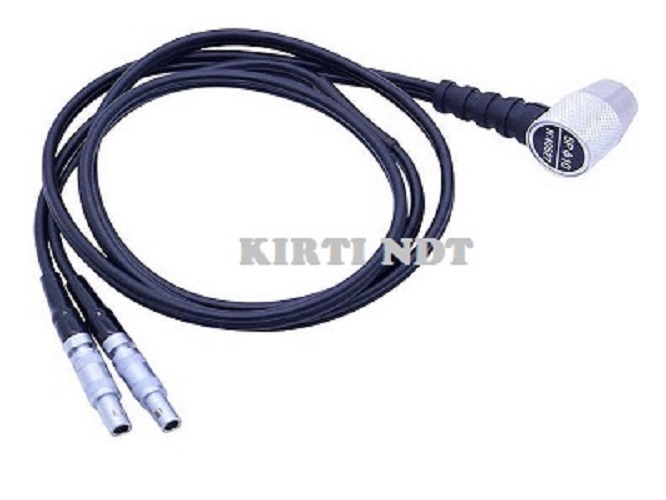

Ultrasonic Thickness Gauge Probe (10MM-5MHZ)

Name: Ultrasonic Thickness Gauge Probe (10MM-5MHZ)
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Ultrasonic Thickness Gauge Probe (10MM-5MHZ) Specification

Features
Long life, high sensitivity, stable performance, compact

Accuracy
0.01 mm

Temperature
-10C to +50C (operating)

Port Size
Standard 2-pin connector

Measuring Range
0.8 mm-300 mm (depends on gauge and material)

Equipment Type
Ultrasonic Thickness Gauge Probe

Number of Specimens
Single point measurement per activation

Resolution
0.01 mm

Power Supply
Supplied by main gauge unit

Interface Type
Standard 2-pin Lemo/BNC Jack

Display Type
Depends on main gauge (typically digital)

Hardness
Contact face: wear-resistant ceramic/alumina

Specimen Size
Minimum diameter 10 mm

Automation Grade
Manual

Application
Thickness measurement of pipes, tanks, sheets, boilers, and structures

Mounting Type
Handheld / plug-in

Operating Voltage
Supplied from gauge (typically 5-12V DC)

Response Time
<1 second

Frequency
5 MHz

Humidity
85% RH

Test Range
Depends on pairing gauge (typically 0.8-300 mm in steel)

Usage
Non-destructive thickness measurement

Capacity
Suitable for various metals, plastics, and ceramics

Machine Weight
Approx. 80 g (probe only)

Test Width
10 mm (probe diameter)

Control Mode
Manual

Couplant Requirement
Glycerin or ultrasonic gel recommended

Compatible Materials
Metals, plastics, glass, ceramics

Protection Class
IP65 (probe body)

Storage Temperature
-20C to +70C

Probe Type
Single element / longitudinal wave

Connector Type
Lemo or BNC (as per gauge compatibility)

Contact Face
Flat, highly polished ceramic

Cable Length
Standard 1 m (other lengths customizable)

Ultrasonic Thickness Gauge Probe (10MM-5MHZ) Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Ultrasonic Thickness Gauge Probe (10MM-5MHZ)

Discover the latest Ultrasonic Thickness Gauge Probe (10MM-5MHZ) and grab yours today! Engineered for incomparable precision, this sublime probe boasts a top-notch single element design with a longitudinal wave, delivering accurate, non-destructive measurements across metals, plastics, glass, and ceramics. Its highly polished ceramic contact face ensures wear resistance, while the compact 80 g construction offers easy handling. Reserve this versatile equipment-compatible with Lemo or BNC connectors, adaptable cable lengths, and IP65 protection-for reliable thickness testing of pipes, tanks, structures, and more. Don't miss out-elevate your inspections now!

Superior Advantages & Applications: Why Choose Our Probe?

Benefit from primary competitive advantages like long-life durability, outstanding sensitivity, and stable performance. This ultrasonic gauge probe is extensively used as a premier solution for thickness measurements in pipes, tanks, boilers, structural sheets, and more. Special features such as a wear-resistant, highly polished ceramic contact face, customizable cables, and universal gauge compatibility make it a top pick for diverse industrial settings. Ideal for both exporters and manufacturers, it ensures precise readings with a rapid response time, making each measurement count.

Sample Policy, Packaging & Certifications: Seamless Experience

Our Ultrasonic Thickness Gauge Probe sample policy is straightforward: samples can be handed over or exchanged at a competitive asking price as per client requirements. Carefully packaged for safe transit, each probe is boxed securely to prevent damage. Accredited certifications guarantee quality and compliance with industry standards, bolstering every shipment's reliability. Whether sampling, purchasing, or exchanging, every transaction is managed with professionalism and transparency for an optimal customer experience.

FAQ's of Ultrasonic Thickness Gauge Probe (10MM-5MHZ):

Q: How do I use the Ultrasonic Thickness Gauge Probe for thickness measurement?

A: To measure thickness, connect the probe to a compatible ultrasonic gauge, apply glycerin or ultrasonic gel as a couplant, and operate in manual control mode. The probe performs single-point measurements per activation.

Q: What materials can this ultrasonic probe measure?

A: This probe is compatible with metals, plastics, glass, and ceramics, offering reliable readings within a measurement range of 0.8 mm to 300 mm, depending on the gauge and specimen material.

Q: When should I choose the Lemo or BNC connector type?

A: Select the connector type based on the main gauge's compatibility. Most gauges support either Lemo or BNC, ensuring seamless integration and optimal signal transmission.

Q: Where is this thickness gauge probe widely applied?

A: It is widely used in thickness measurement of pipes, tanks, boiler sheets, and structural materials in various industries, including manufacturing, maintenance, and quality assurance sectors.

Q: What are the key benefits of using this ultrasonic probe?

A: Key benefits include high measurement accuracy (0.01 mm), fast response time (<1 second), compact and durable build, wear-resistant polished ceramic face, and suitability for a spectrum of hard and soft materials.

Q: What is the process for obtaining a sample of this probe?

A: Clients can request a sample at an agreed-upon asking price, which is then handed over or exchanged according to the sample policy. Each sample is securely packaged, ensuring it arrives in excellent condition.
