Mpi Accessories

• Application
• For checking performance & calibration of magnetic particle testing apparatus

• Capacity
• Single Unit

• Color
• Silver Grey

• Components
• Test Block unit only

• Dimension (L*W*H)
• 100 mm x 50 mm x 10 mm

• Features
• Corrosion resistant, Durable, High dimensional accuracy

• Function
• Used to assess the sensitivity, efficiency and performance of magnetic particle testing equipment and procedures

• Operating Temperature
• 0C to 50C

• Power Supply
• Not required (Non-powered tool)

• Product Type
• Test Block for Magnetic Particle Test

• Response Time
• Instantaneous

• Size
• 100 mm x 50 mm

• Thickness
• 10 mm

• Usage
• Magnetic particle test block for standardization and calibration of MPI equipment

• Weight
• Approx. 0.5 Kg

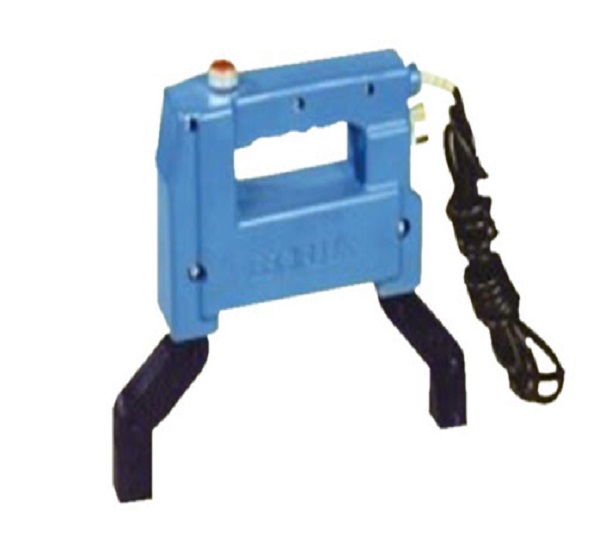

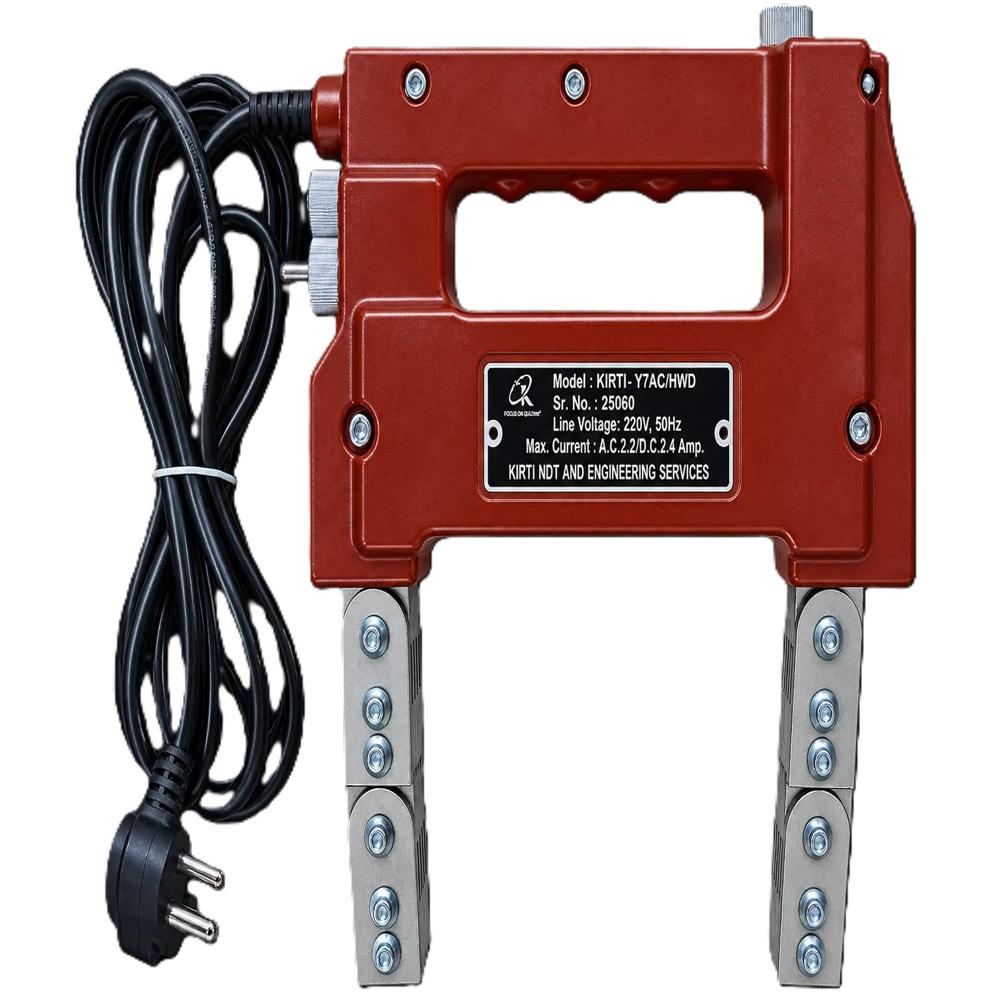

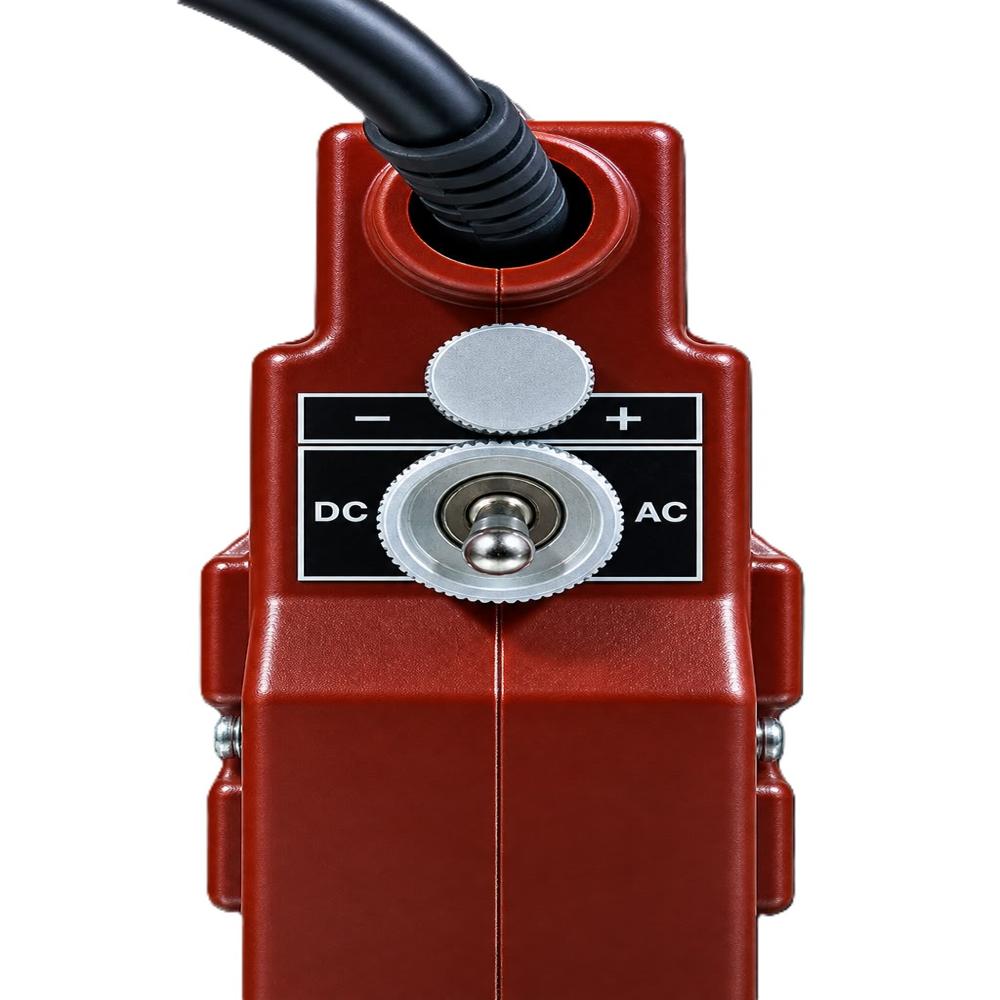

• Application
• Magnetic Particle Testing, NDT flaw detection

• Capacity
• Can lift 4.5 kg with AC and up to 18 kg with DC

• Charging Voltage
• 12 V DC (for DC operation)

• Color
• Blue & Grey

• Components
• Yoke body, power supply cable, removable pole pieces

• Current Rating
• Up to 3 A (AC) / 2 A (DC)

• Dimension (L*W*H)
• 225 mm x 180 mm x 60 mm (approx.)

• Display Type
• Other, No display

• Features
• Robust construction, lightweight, portable, easy handle, interchangeable pole pieces, suitable for rough environments

• Frequency
• 50 Hz (AC)

• Function
• Detection of surface and subsurface cracks in ferromagnetic materials using magnetic particle inspection

• IP Rating
• IP54

• Input
• AC/DC electrical power

• Interface
• Manual operation

• Operating Temperature
• 0C to 50C

• Output
• Electromagnetic field

• Power Source
• Mains power or external DC battery

• Power Supply
• AC/DC

• Product Type
• Electromagnetic Yoke

• Rated Voltage
• 230 V AC, 50 Hz or 12 V DC

• Response Time
• Instantaneous on switching

• Size
• Standard Handheld

• Supply Voltage
• 230 V AC or 12 V DC

• Usage
• Industrial NDT (Non Destructive Testing) applications

• Weight
• Approx. 3 kg
