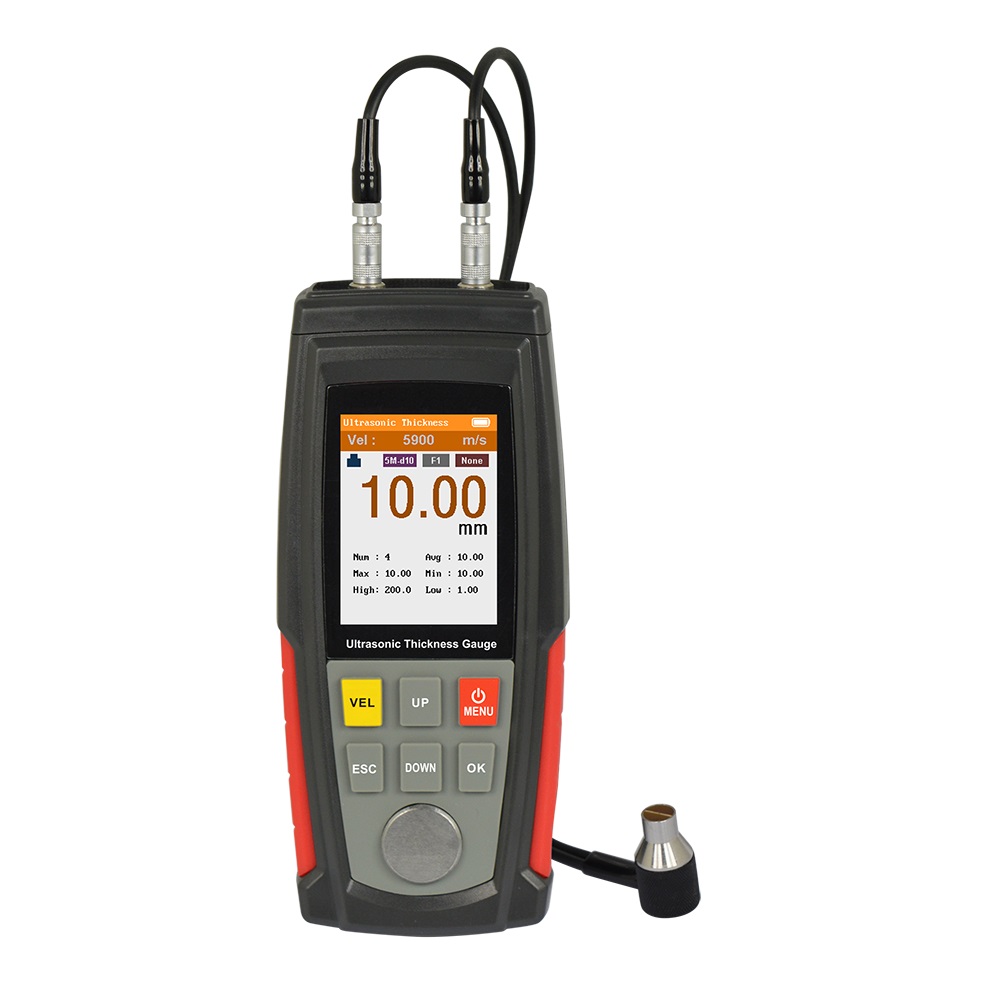

Digital Ultrasonic Thickness UTG-225

Name: Digital Ultrasonic Thickness UTG-225
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Digital Ultrasonic Thickness UTG-225 Specification

Sensor Type
Piezoelectric ultrasonic sensor

Case
ABS plastic

Frequency
5 MHz

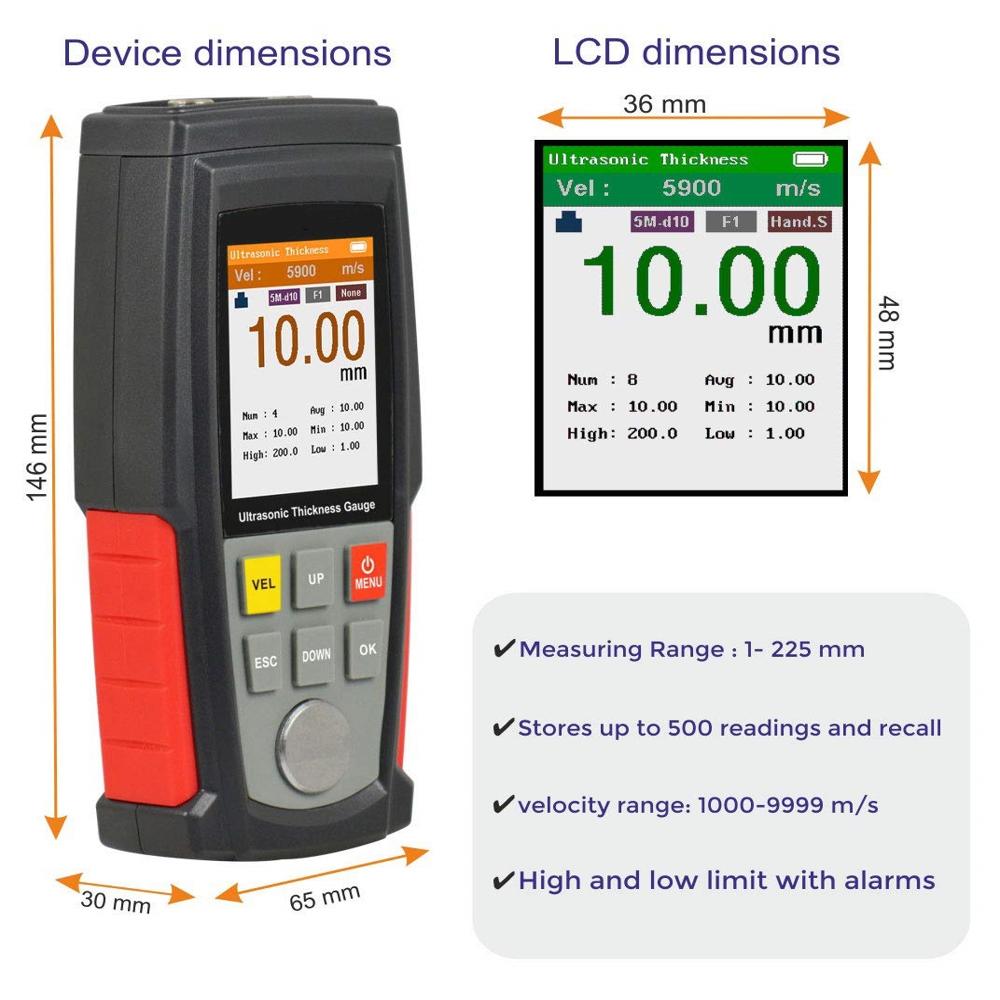

Outer Size
153 x 67 x 27 mm

Display
LCD digital display

Measuring Range
1.2 to 225 mm (in steel)

Material
ABS body; probe: stainless steel

Working Presssure
Normal atmospheric pressure

Grade
Industrial

Application

Accuracy
(1%H+0.1) mm

Minimum Pipe Diameter
20 mm (depending on wall thickness)

Auto Power Off
Yes

Low Battery Indicator
Yes

Data Hold Function
Yes

Standard Accessories
Main unit, ultrasonic probe, couplant, carrying case, user manual

Velocity Range
1000 to 9999 m/s (adjustable)

Resolution
0.1 mm

Operating Temperature
0C to 40C

Weight
Approx. 250 g (including batteries)

Power Supply
2 x 1.5V AA batteries

Auto Calibration
Yes

Digital Ultrasonic Thickness UTG-225 Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Digital Ultrasonic Thickness UTG-225

Model: KIRTI-UTG-225

The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement. This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas. Any material that allows ultrasonic to transmit at a constant speed and that is distinguishable from waves reflected from the back side is applicable to this instrument..

Description

Product Specification:

?Wide measurement range from 1.00 225.0 mm (0.039 to 8.85inch

? Ultrasonic wave velocity measurement from 1000 m/s to 9999 m/s.

? Transducer (Probe) Type: 5MHz, 10 mm

? 0.01mm Resolution Display,

?Accuracy +/-(0.5%H,0.05)mm

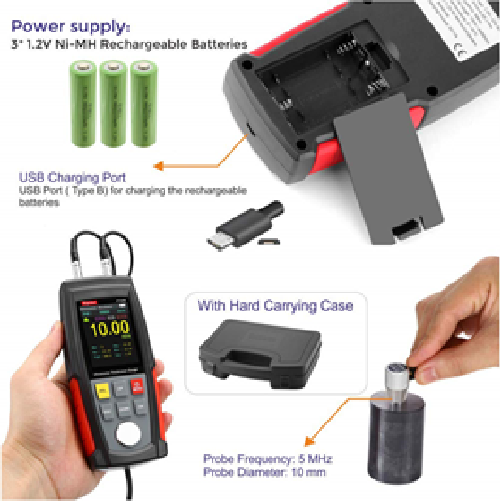

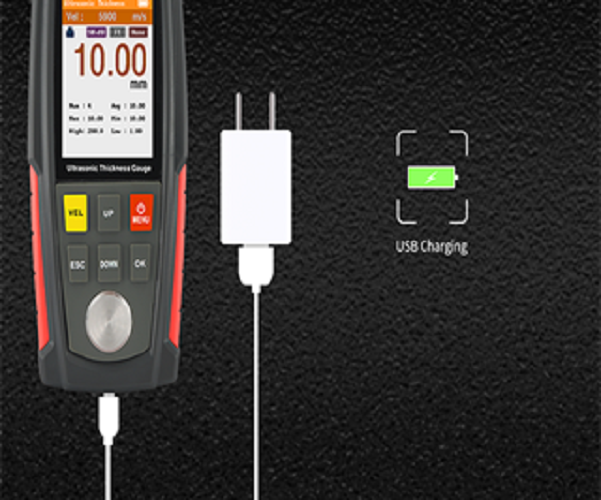

? USB Charging (5V 1A), (3Ni-MH Rechargeable Batteries of 1.2V).

? Multi color HD Color Screen Display,

? Operate Temperature range: 0-40C/ 32-109.4?

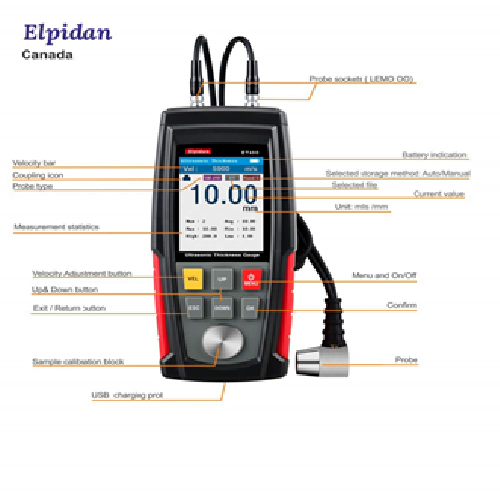

Features:

? Measuring the thickness and the sound speed of various materials.

? High contrast 2.4" color-screen HD display with backlit & 5 selectable color display

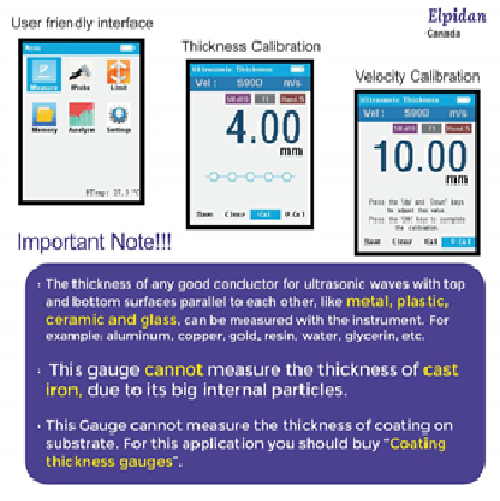

?Auto calibration

? Units: mm/inch

? Storage data ( up to 500 data) and recall function

? Statistic view (Min/Max/Avg/High/Low)

?Automatic shutdown save battery

? Built-in metal calibration block

Reliable and Accurate Measurement

The UTG-225 utilizes a piezoelectric ultrasonic sensor with a 5 MHz frequency, delivering highly precise thickness measurements from 1.2 to 225 mm in steel. Its accuracy and consistent performance make it suitable for demanding industrial requirements.

User-Friendly Design and Operation

Designed for ease of use, the UTG-225 features an intuitive LCD digital display, automatic calibration, and a data hold function for convenient readings. The lightweight construction and included accessories enhance portability and operational simplicity.

Versatile Applications Across Industries

Engineered for broad applicability, this device is effective in factories, workshops, laboratories, and onsite inspections. It measures the thickness of metal, plastic, ceramics, glass, and other compatible materials, serving manufacturers, exporters, and service providers.

FAQ's of Digital Ultrasonic Thickness UTG-225:

Q: How do I calibrate the UTG-225 ultrasonic thickness gauge?

A: The UTG-225 includes an auto calibration function. Simply follow the procedure in the user manual to place the probe on the standard calibration sample, and the device will automatically calibrate itself for accurate measurements.

Q: What materials can the UTG-225 measure accurately?

A: This gauge is designed to measure the thickness of metals, plastics, ceramics, glass, and other materials that conduct ultrasonic waves efficiently. Always ensure proper coupling and select the correct velocity for the material type.

Q: When should I use the data hold function on this device?

A: Activate the data hold function when you need to temporarily freeze a measurement on the display, for instance, when recording or documenting a reading during an inspection.

Q: Where can the UTG-225 be utilized effectively?

A: The device is suitable for industrial settings such as manufacturing plants, quality control labs, or onsite installations in India and beyond, wherever non-destructive thickness measurements are required.

Q: What is the benefit of the low battery indicator and auto power off features?

A: The low battery indicator prevents unexpected shutdowns by alerting you to replace the batteries in advance, while the auto power off conserves battery life when the device is not in use, ensuring extended operation in the field.

Q: How does the adjustable velocity range enhance the measuring process?

A: With an adjustable velocity range from 1000 to 9999 m/s, the UTG-225 can be tailored for different materials, improving measurement accuracy and allowing users to handle a wide variety of applications.
