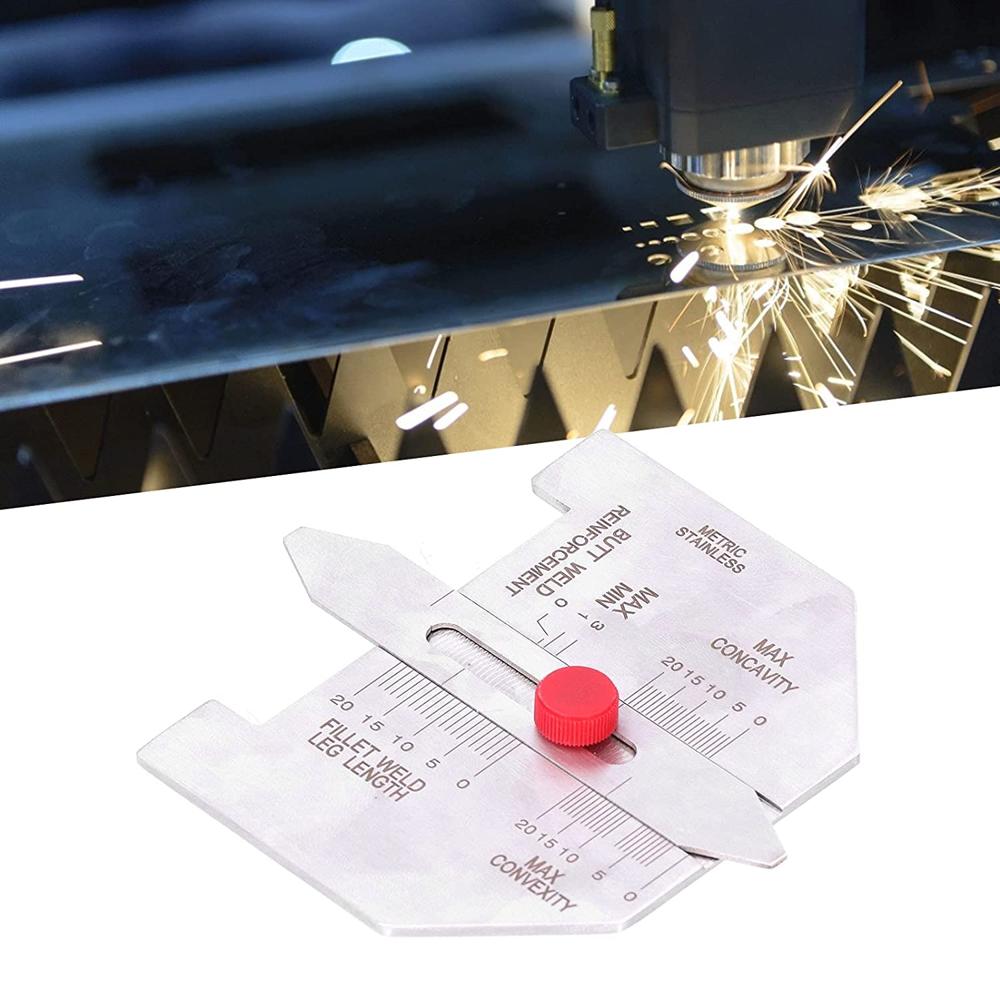

AUTOMATIC WELDING GAUGE
AUTOMATIC WELDING GAUGE
AUTOMATIC WELDING GAUGE
AUTOMATIC WELDING GAUGE
AUTOMATIC WELDING GAUGE
AUTOMATIC WELDING GAUGE

AUTOMATIC WELDING GAUGE

Price 1200.0 INR/ Piece

MOQ : 3 Pieces

AUTOMATIC WELDING GAUGE Specification

  • Frequency
  • Manual operation (no frequency applicable)
  • Sensor Type
  • Analog mechanical gauge
  • Outer Size
  • Approx. 150 mm x 75 mm
  • Measuring Range
  • 0-25 mm (Fillet Weld), 0-60 mm (Weld Reinforcement)
  • Case
  • Protective metal case included
  • Display
  • Satin chrome plated scale, etched graduations
  • Thread
  • Non-threaded (sliding gauge)
  • Material
  • Stainless Steel
  • Seal Material
  • Stainless Steel, corrosion resistant
  • Grade
  • Industrial
  • Application
  • Measurement of welds, verification of weld size and reinforcement
  • Accuracy
  • 0.1 mm
  • Packaging
  • Supplied in a custom protective pouch
  • Compliance
  • Meets AWS and ISO welding inspection standards
  • Operation
  • Automatic locking, single-hand operation
  • Feature
  • Multi-purpose: measures fillet weld size, weld throat, reinforcement height, and misalignment
  • Surface Finish
  • Satin chrome finish for clear readings and durability
  • Corrosion Resistance
  • High corrosion resistance for field use
  • Scale Graduation
  • Etched markings in metric (mm) and inch (in)
  • Weight
  • Approx. 125 grams


AUTOMATIC WELDING GAUGE Trade Information

  • Minimum Order Quantity
  • 3 Pieces
  • Supply Ability
  • 500 Pieces Per Month
  • Delivery Time
  • 7 Days


About AUTOMATIC WELDING GAUGE

  • Excellent Material: METRIC VERSION Made of stainless steel, engraved, rustproof and corrosion resistant, not easy to wear and deform. WITH CARRYING POUCH
  • For Welding Measuring: The welding inspection gauge can be used to measure the height of flat welds and fillet welds.
  • Wide Range: The measuring range of the welding inspection gauge is 20mm, and the measuring range is wide and practical.
  • For Weld Size Checking: Automatic weld gauge can check the throat of the fillet weld and determine the size of the weld leg of the fillet weld.
  • Easy Control: The fillet weld gauge can be adjusted, and the concavity or convexity of the weld can be controlled.


Engineered for Precision and Durability

Crafted from premium stainless steel and finished with a satin chrome coating, this gauge offers superior corrosion resistance and a long service life-even under demanding field conditions. Its etched graduations ensure that measurements stay clear and accurate over time, making it the preferred choice for industrial weld inspections.


Simplified Operation and Versatile Functionality

With its automatic locking mechanism and single-hand operation, the gauge streamlines the measurement process. Suitable for assessing fillet weld size, weld throat, reinforcement height, and misalignment, this tool supports both metric and imperial units, catering to a variety of inspection tasks while enhancing operator efficiency.

FAQ's of AUTOMATIC WELDING GAUGE:

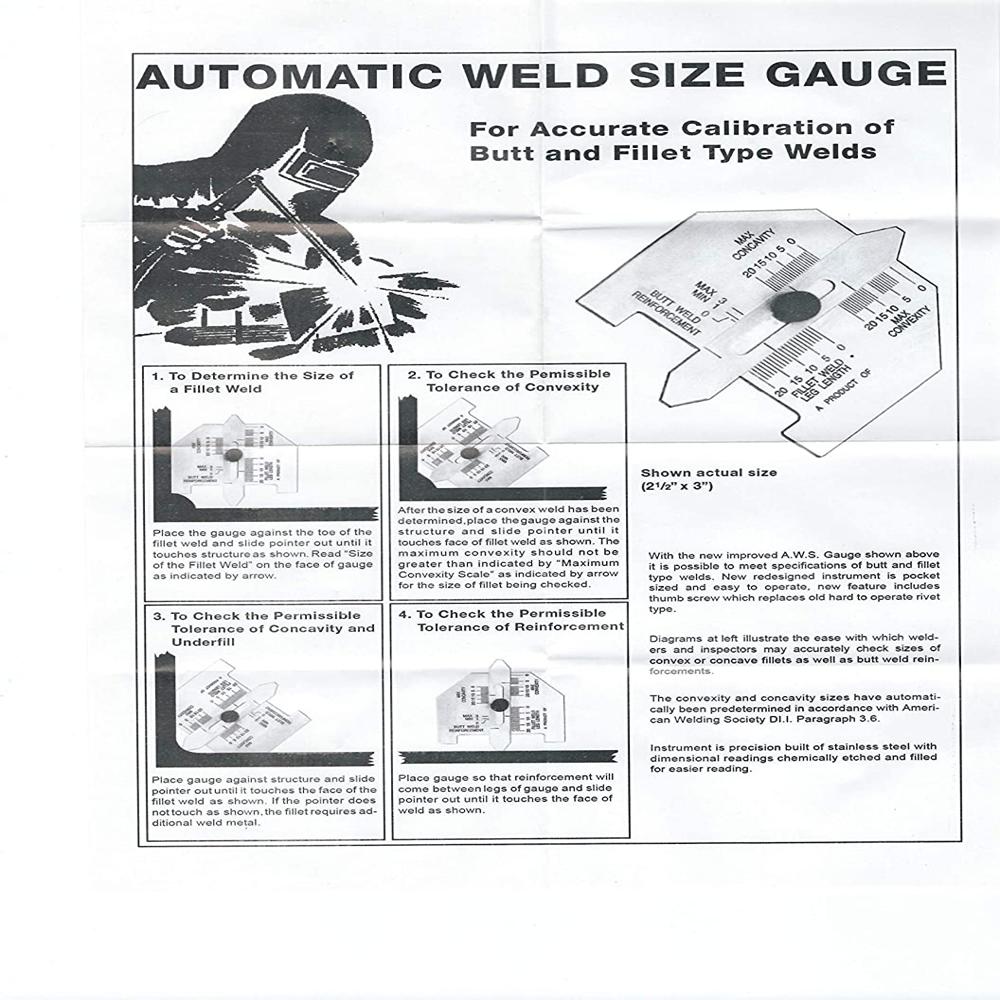

Q: How do I operate the automatic welding gauge to measure weld size?

A: Simply position the gauge on the weld, use one hand to slide the measuring arm to fit the weld profile, and the automatic locking mechanism will secure the reading for easy and accurate measurement.

Q: What features ensure the accuracy and durability of this welding gauge?

A: The gauge is constructed from corrosion-resistant stainless steel and features a satin chrome finish for durability. Its etched metric and inch graduations offer precision up to 0.1 mm, and the analog mechanical design eliminates electronic errors.

Q: When should I use this welding gauge during welding inspections?

A: Use this gauge both during and after welding processes to verify weld size, reinforcement, throat depth, and alignment, ensuring compliance with AWS and ISO standards and promoting weld integrity.

Q: Where can this welding gauge be used effectively?

A: This tool is ideal for industrial environments, workshops, and field sites, offering high corrosion resistance and robust construction for reliable operation across diverse outdoor and indoor locations.

Q: What is the process for taking measurements with this gauge?

A: Align the gauge with the weld seam, adjust the sliding arm to the required weld characteristic, and read the etched scales directly. The measurement can be taken in mm or inch, depending on your needs, and automatic locking holds the reading in place.

Q: How does the gauge benefit weld inspectors and quality control teams?

A: The gauge streamlines inspection by combining multiple measurement capabilities into a single tool, supporting single-handed operation for speed and efficiency. Its clear, durable markings and protective case minimize maintenance and maximize longevity, supporting reliable quality control.
