CROSS HATCH CUTTER

Name: CROSS HATCH CUTTER
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 2800.0 INR
Availability: InStock

Price 2800.0 INR/ Unit

Get a Price/Quote

MOQ : 4 Units

CROSS HATCH CUTTER Specification

Capacity
Up to 3 Layers

Measurement Range
1 mm & 2 mm Cross Hatch Spacing

Resolution
Precisely Machined Teeth for Fine/Coarse Cuts

Equipment Type
CROSS HATCH CUTTER

Protection
Carrying Case Included

Temperature Range
Ambient

Application Media
Paint and Coating Films

Material
Stainless Steel Cutter with Metal or Plastic Handle

Power Supply
Manual

Accuracy
High - Designed to Provide Consistent Results

Range
6-cut and 11-cut Blades Included

Complies with Standards
ISO 2409, ASTM D3359

Usage
Suitable for Laboratory and Field Use

Accessories Provided
Brush, Magnifier, Carrying Case

Blade Material
Hardened Stainless Steel

Test Method
Cross Hatch Adhesion Test for Coatings

Number of Blades
2 (6 teeth & 11 teeth)

Operation
Handheld, Easy-to-Use

Weight
Approx. 150 g

CROSS HATCH CUTTER Trade Information

Minimum Order Quantity
4 Units

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About CROSS HATCH CUTTER

Cross hatch Cutter to assess the adhesion paint coatings(thickness) and instant assessment of the QUALITY of the bond to the substrate.

Description

Cross hatch cutter is designed and manufactured in accordance with ISO 2409-1974.It is also complies withGB/T9286-98standard.

The instrument is mainly used for the measurement of the grid scratching adhesion of the organic paints.

It is not only applicable to the laboratories, but also good to the construction sites under various conditions.

There are three specifications of multi-blade cutters (1mm, 2mm, and 3mm), which can be closed for differenttestconditions.

The multi-blade cutter with 1mm distance is suitable to the test pieces with the paint film less than 60um.Themulti-blade cutterwith 2mmdistanceissuitable tothe test pieceswiththe paintfilm of60-100um

Introduction:2202 Cross Hatch Cutter is designed and manufactured according to ISO 2409-1992, GB/T9286-98, BS 3900 E6 andASTMD3359 standards

Complies with International Testing Standards

Engineered to meet both ISO 2409 and ASTM D3359 standards, the CROSS HATCH CUTTER guarantees reliable and comparable results worldwide. Its precision blades allow for meticulous and reproducible tests, meeting stringent quality control requirements.

Versatile and Easy to Use Anywhere

This handheld tool is purpose-built for versatility, enabling use in both laboratories and field environments. Its lightweight and user-friendly design simplifies the coating adhesion test, providing accurate results with minimal effort. The robust carrying case adds further convenience and protection.

All-Inclusive and Robust Accessories

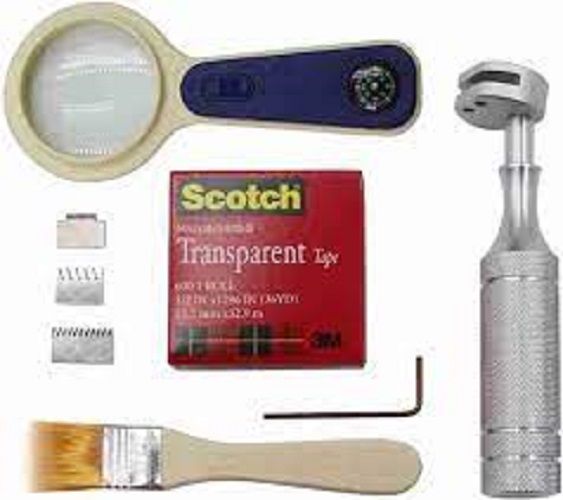

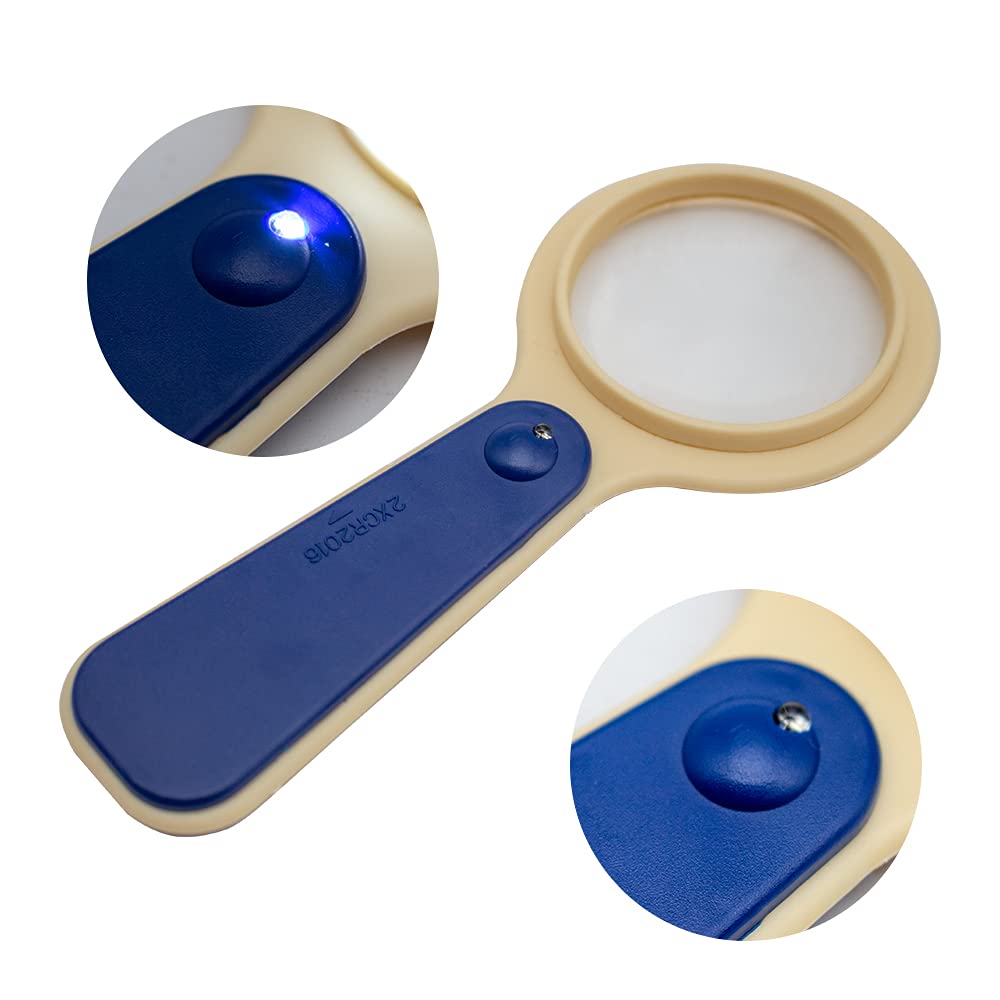

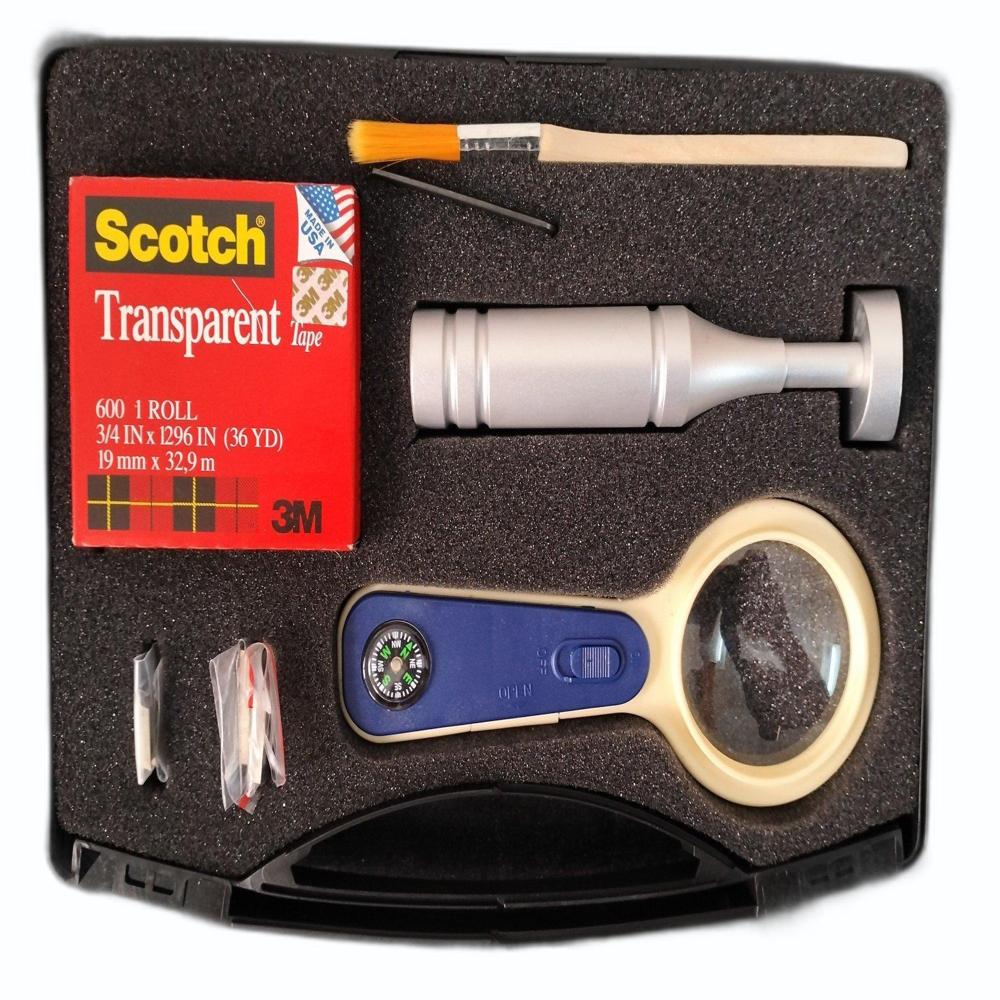

To ensure comprehensive testing, each CROSS HATCH CUTTER comes with essential accessories: a fine cleaning brush, a powerful magnifier for inspection, and a durable carry case. These inclusions enhance both the functionality and portability of the equipment.

FAQ's of CROSS HATCH CUTTER:

Q: How do I use the CROSS HATCH CUTTER for adhesion testing?

A: To use the CROSS HATCH CUTTER, firmly press the cutter onto the coating surface and draw it in one direction, then repeat at a 90-degree angle to create a grid pattern. Next, gently brush away loose fragments and inspect the cross hatch area with the provided magnifier to assess adhesion quality.

Q: What makes the CROSS HATCH CUTTER suitable for both laboratory and field use?

A: The cutter is lightweight, portable, and requires no power supply, making it easy to transport and operate in diverse environments. Its durable construction and included carrying case ensure reliable performance and protection during field use.

Q: When should the cross hatch adhesion test be performed?

A: The test should be conducted after the coating has fully cured and is expected to adhere properly to the substrate. It is typically used in quality control processes during research, development, routine inspection, or when qualifying new paint or coating systems.

Q: Where can the CROSS HATCH CUTTER be used?

A: It can be used on any appropriate flat-coated surfaces, such as metal, plastic, or wood, both indoors and outdoors. Its manual operation makes it ideal for laboratories, manufacturing facilities, and on-site field investigations.

Q: What materials and coatings can be tested with this device?

A: The CROSS HATCH CUTTER is suitable for testing adhesion of paint and coatings on a variety of media, including paint films and protective coatings up to three layers thick.

Q: What are the benefits of the double-blade design (6 teeth & 11 teeth)?

A: The tool's interchangeable 6-teeth and 11-teeth blades allow for both fine (1 mm spacing) and coarse (2 mm spacing) cuts, accommodating different coating thicknesses and application requirements while providing precise results.
