DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300

Send Inquiry

Request To Call Back

DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300

Name: DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300 Specification

Case
ABS plastic, industrial enclosure

Thread
Standard coupling

Measuring Range
1.2 mm to 225 mm (steel)

Bourdon Tube
N/A (not applicable for ultrasonic gauges)

Frequency
5 MHz (typical) transducer

Glass Size
N/A (not applicable for this model)

Display
4-digit LCD display, backlit

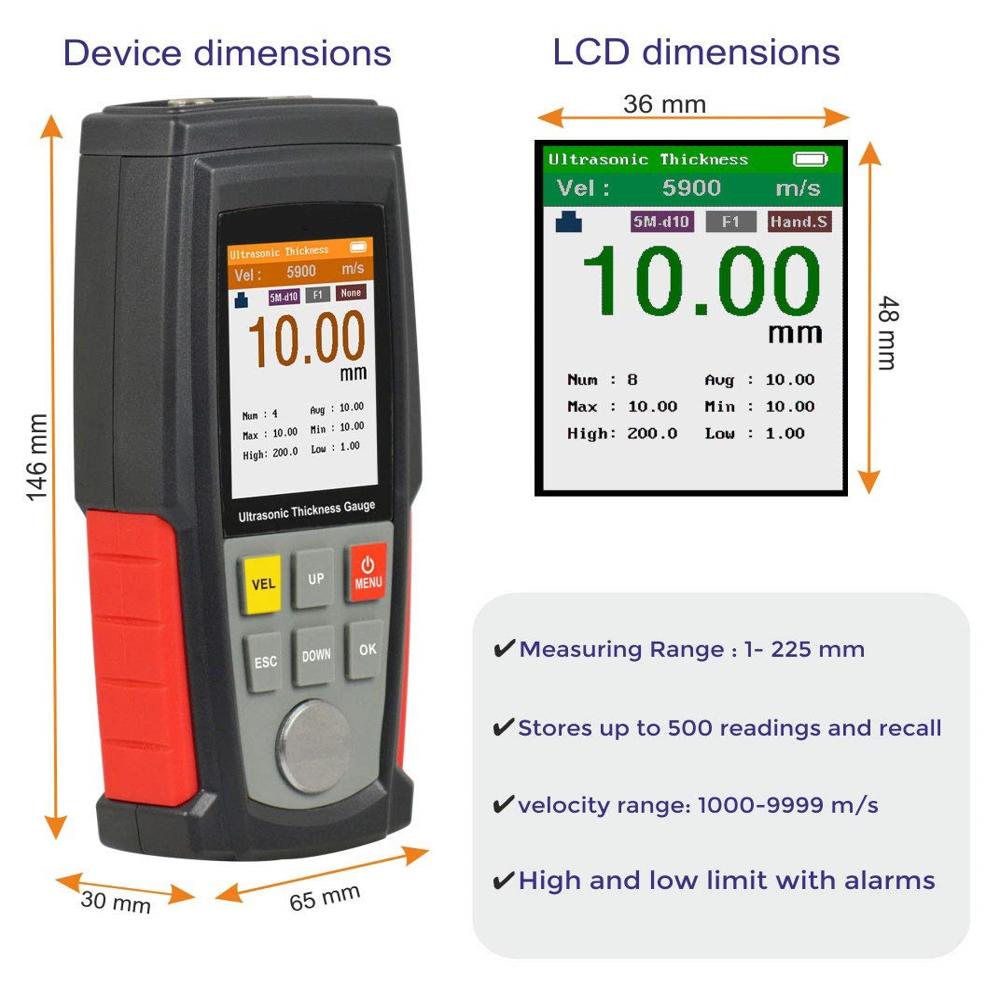

Outer Size
150 x 74 x 32 mm

Sensor Type
Ultrasonic Pulse-Echo

Material
Plastic housing with metal probe

Working Presssure
Atmospheric

Seal Material
Rubber gasket at probe interface

Grade
Industrial grade

Application
Measurement of wall thickness in metals, pipes, tanks, etc.

Accuracy
(1% thickness + 0.1 mm)

Minimum Pipe Diameter
20 mm (depends on material)

Data Hold Function
Yes

Power Supply
2 x 1.5V AA batteries

Alarm
Low and high thickness alarm

Operating Temperature
-10C to +60C

Low Battery Indicator
Yes

Resolution
0.1 mm

Weight
Approx. 250 g (with batteries)

Probe Cable Length
1 m

Auto Calibration
Available

Velocity Range
1000 - 9999 m/s

DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300 Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300

DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300

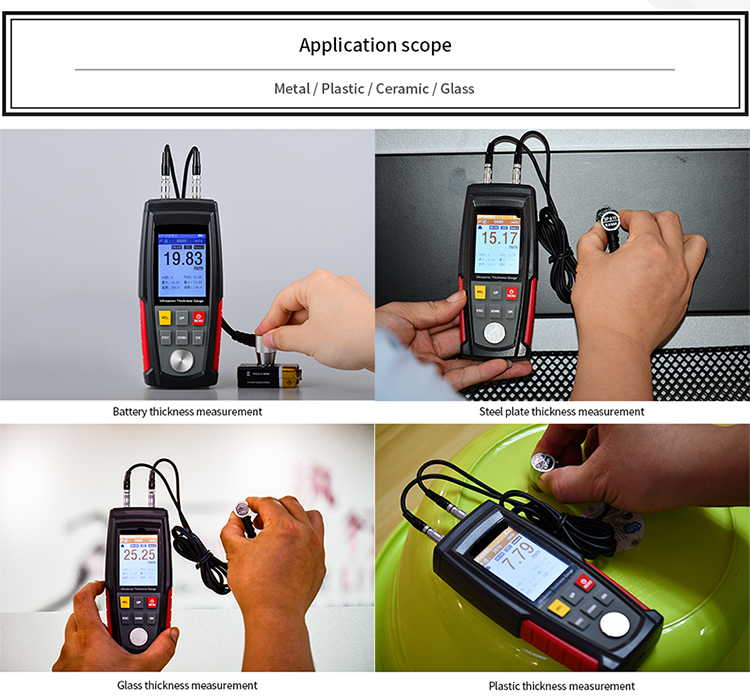

The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement. This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas. Any material that allows ultrasonic to transmit at a constant speed and that is distinguishable from waves reflected from the back side is applicable to this instrument..

Description

DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300

Product Specification:

? Wide measurement range from 1.00 300.0 mm (0.039 to 11.8inch)

? Ultrasonic wave velocity measurement from 1000 m/s to 9999 m/s.

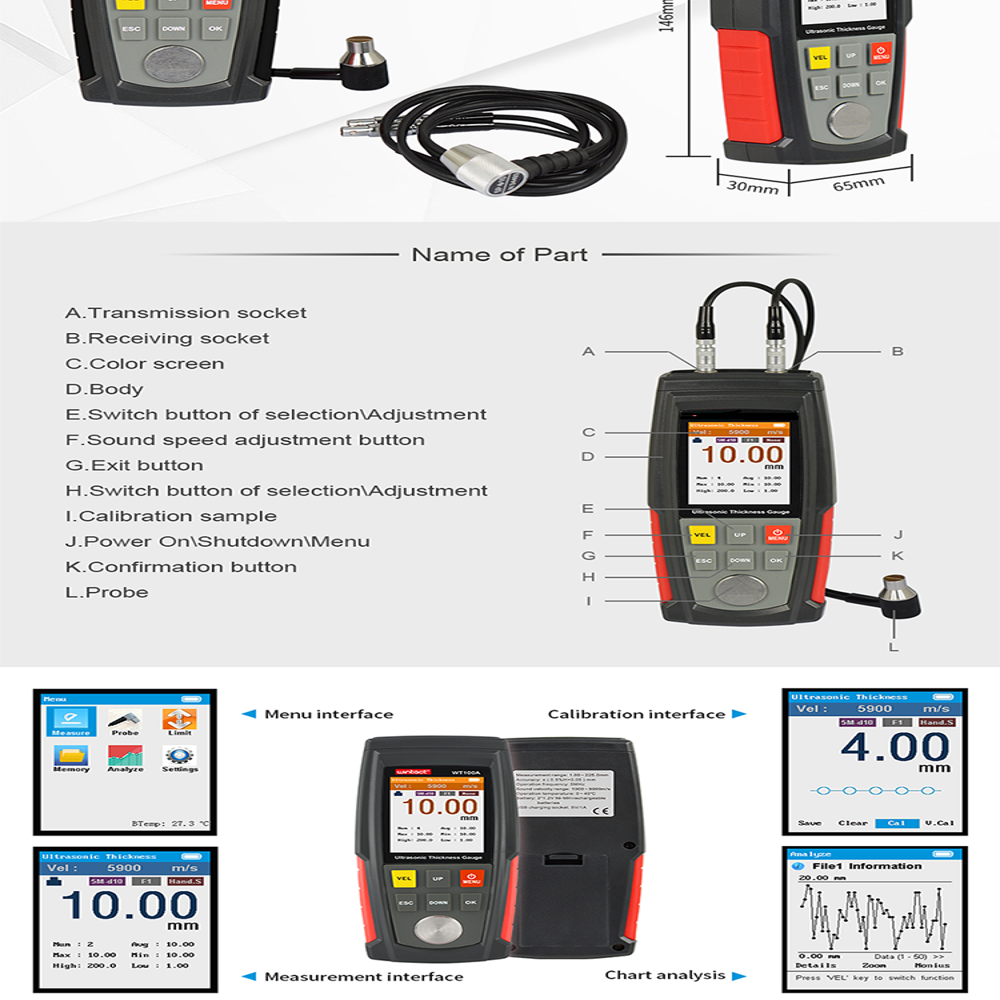

? Two Transducer (Probe) Type: 5MHz, 10 mm & 5Mhz 6mm

? Operational Frequency: 2&5Mhz

? 0.01mm Resolution Display,

? Accuracy +/-(0.5%H,0.05)mm

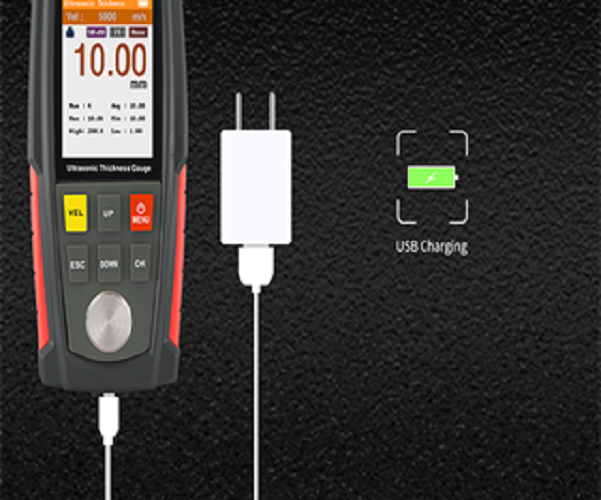

? USB Charging (5V 1A), (3Ni-MH Rechargeable Batteries of 1.2V).

? Multi color HD Color Screen Display,

? Operate Temperature range: 0-40C/ 32-109.4?

Features:

?Measuring the thickness and the sound speed of various materials.

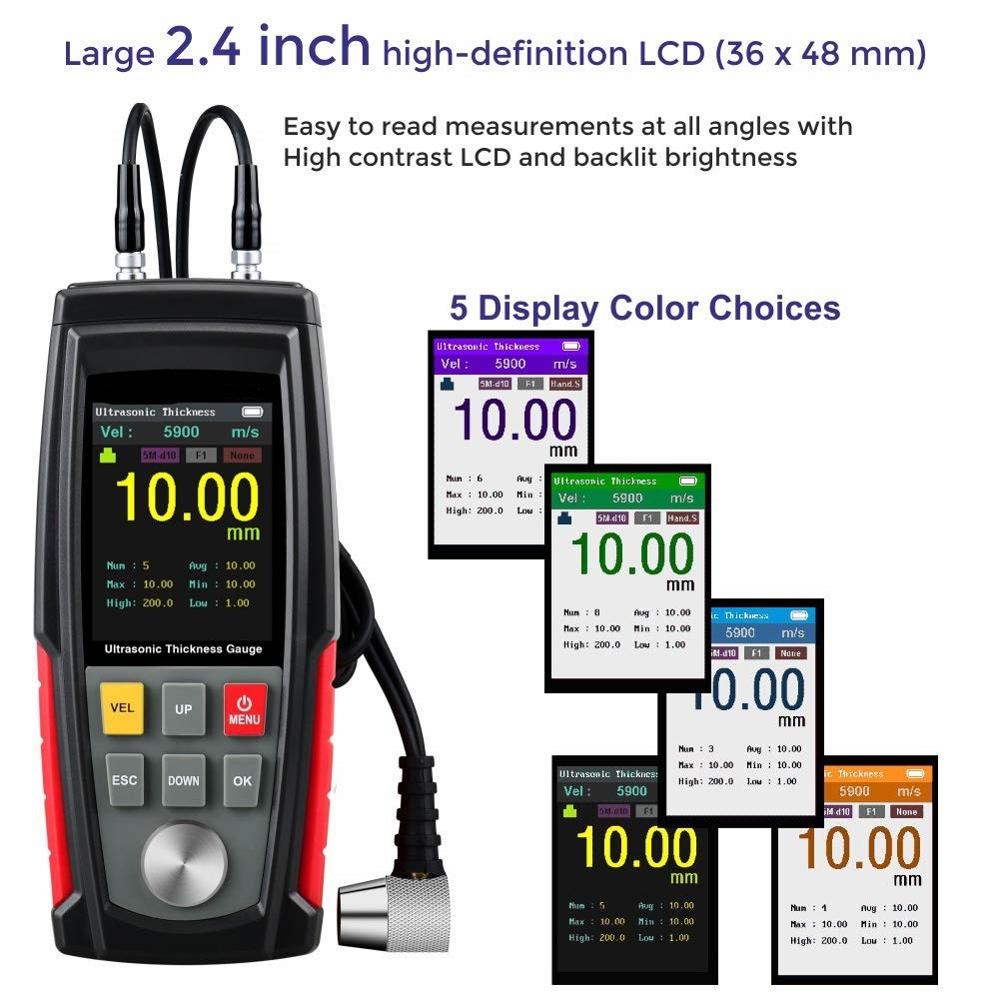

?High contrast 2.4" color-screen HD display with backlit & 5 selectable color display

?Auto calibration

?Units: mm/inch

?Storage data ( up to 1500 data) and recall function

?Statistic view (Min/Max/Avg/High/Low)

?Automatic shutdown save battery

Robust Measurement Capabilities

Equipped to measure wall thickness in metals, pipes, and tanks, the KIRTI-UTG-300 delivers high-precision results within a broad range of 1.2 mm to 225 mm (steel). Its automatic calibration, data hold function, and 0.1 mm resolution facilitate swift and reliable readings in demanding industrial settings.

User-Friendly Design & Operation

The gauge features a compact ABS enclosure, a clear backlit LCD display, and intuitive controls, making it user-friendly for on-site technicians. A 1-meter probe cable and standard coupling thread ensure compatibility and ease of maneuverability during inspections, while the rubber gasket seals the probe interface from dust and moisture.

Reliable Power & Safety Features

Powered by two 1.5V AA batteries, the device provides extended operational hours and features a low battery indicator for timely replacement. Integrated high and low thickness alarms increase workplace safety and prevent equipment failure by providing alerts during measurements.

FAQ's of DIGITAL ULTRASONIC THICKNESS GAUGE KIRTI-UTG-300:

Q: How is the KIRTI-UTG-300 ultrasonic thickness gauge operated in industrial settings?

A: To operate, attach the ultrasonic probe to the surface using standard coupling gel, power on the gauge with 2 AA batteries, and select the appropriate material velocity. The gauge automatically calibrates, then provides wall thickness readings on its backlit LCD display. Data can be held, and alarms alert users for out-of-range measurements.

Q: What materials can be measured and in what environments can this gauge be used?

A: The KIRTI-UTG-300 is primarily suitable for metals such as steel, iron, and alloys. It can be used for wall thickness checks in pipes, tanks, and structural components in environments from -10C to +60C, provided ambient atmospheric pressure is maintained.

Q: When should the batteries be replaced in the KIRTI-UTG-300 gauge?

A: The gauge displays a low battery indicator on the LCD when the battery voltage drops. It is recommended to replace both AA batteries immediately after this indicator appears to ensure consistent performance and avoid measurement inaccuracies.

Q: Where can the KIRTI-UTG-300 be effectively utilized?

A: This thickness gauge is ideal for use in manufacturing plants, metal fabrication workshops, quality control laboratories, and field inspections across industries such as shipbuilding, petrochemical, and mechanical engineering throughout India.

Q: What process ensures accurate measurement with the device?

A: Accurate measurement involves applying a coupling gel to the test area, securing the probe with even pressure, and ensuring the material velocity is correctly set for the specific substrate. The auto calibration feature further enhances measurement accuracy.

Q: How does the data hold function benefit the user?

A: The data hold function freezes the current reading on the display, allowing users to record or analyze the value even after removing the probe, which is especially useful for measurements in hard-to-reach or poorly lit areas.

Q: What are the primary benefits of using the KIRTI-UTG-300 for thickness measurement?

A: Key benefits include its non-destructive nature, rapid and precise thickness determination, straightforward operation, and added safety via high/low thickness alarms, making it invaluable for quality assurance and preventive maintenance.
