POCKET FILLET WELD GAUGE

Name: POCKET FILLET WELD GAUGE
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

POCKET FILLET WELD GAUGE Specification

Outer Size
Approx. 85 mm x 25 mm

Case
Stainless Steel Pocket Case

Measuring Range
1/8 to 1 (3.2 mm to 25.4 mm)

Display
Engraved Graduations

Material
Stainless Steel

Grade
Industrial

Application
Measuring fillet weld sizes and checking concavity/convexity of welds on site or in workshop

Accuracy
0.1 mm

Finish
Satin / Brushed

Type
Portable, Pocket-Sized

Graduation
Laser Engraved for Durability

Packaging
Individual Protective Case

Readability
High Contrast Engravings

Measurement Type
Direct Reading

Weight
Approx. 30 grams

Corrosion Resistance
Yes

Standards
Conforms to AWS and other industrial welding standards

Usage
For Weld Inspectors, Fabricators, Quality Control

POCKET FILLET WELD GAUGE Trade Information

Minimum Order Quantity
10 Units

Supply Ability
500 Units Per Month

Delivery Time
7 Days

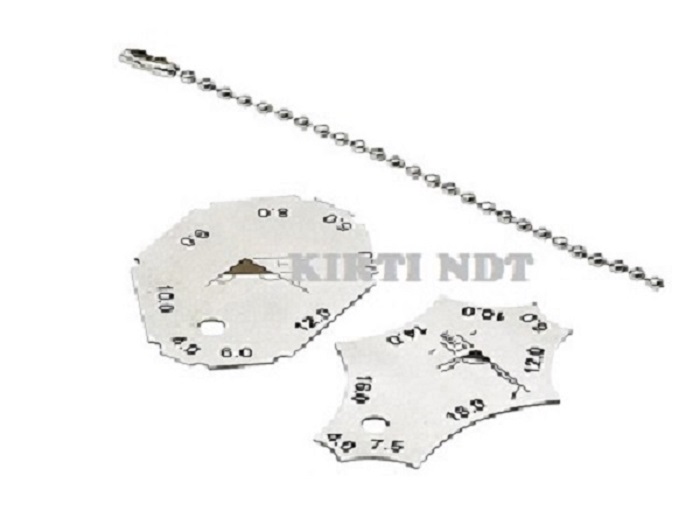

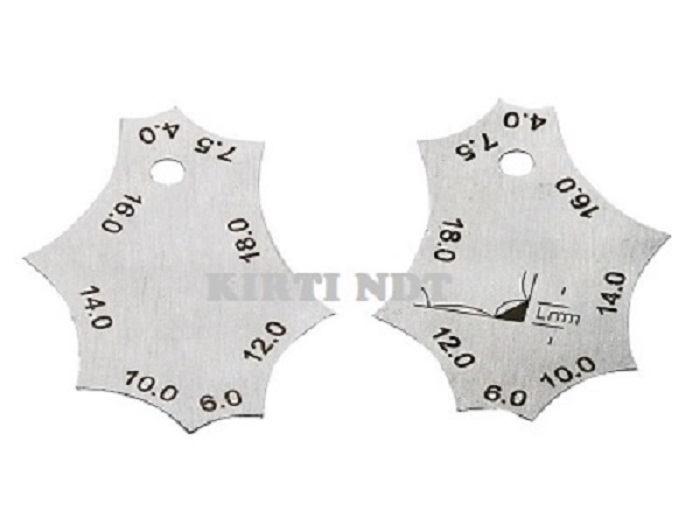

About POCKET FILLET WELD GAUGE

Features:

Pocket Size- Measures 8 Size Fillets Check Leg Length, Throat Size, Plus allowable Convexity All Increments Permanently Engraved Each Welder Can Carry a set for pre-Inspection Handy Key Chain Hold Set Together

Material: stainless steelThickness of the fillet weld:4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm

Fillet Weld Size: 4mm,6mm,7.5mm,10mm,12mm,14mm,16mm,18mmAccuracy: 0.5m

Precision Engineering for Field and Workshop Use

The Pocket Fillet Weld Gauge is engineered for demanding industrial environments, enabling accurate measurement of fillet weld sizes and concavities or convexities. Its stainless steel construction combined with a satin or brushed finish delivers robust durability and corrosion resistance, making it a long-lasting companion for professionals. Laser-engraved graduations ensure that the readings remain precise and visible over time, even with frequent use.

Designed with Portability and Protection in Mind

Compact and lightweight at approximately 30 grams, this gauge is designed for ultimate portability. Slide it into its dedicated stainless steel pocket case for easy access and protection wherever your work takes you. Whether on-site or in the workshop, this tool offers immediate, direct reading capabilities, reducing the risk of error and saving valuable time in inspection and fabrication processes.

FAQ's of POCKET FILLET WELD GAUGE:

Q: How does the Pocket Fillet Weld Gauge benefit weld inspectors and fabricators?

A: This gauge allows for rapid, direct measurements of fillet weld sizes and checks for weld concavity or convexity, ensuring compliance with AWS and other welding standards. Its high-precision readings improve inspection accuracy and help maintain quality control on-site or in workshops.

Q: What is the process for using the gauge to measure welds?

A: Simply position the gauge so that its base aligns with the weld. The laser-engraved graduations allow for immediate, direct reading of measurements from 1/8" to 1" (3.2 mm to 25.4 mm). Its clear markings and accuracy to 0.1 mm make assessment quick and reliable.

Q: When should this fillet weld gauge be used?

A: It is ideal for use during and after welding processes-whenever accurate weld size measurements and profile checks are crucial to meet industrial standards or during quality inspections and fabrication.

Q: Where can the Pocket Fillet Weld Gauge be effectively applied?

A: This tool is suitable for use both on job sites and in workshops, wherever weld sizes need to be assessed. Its pocket-sized design and protective case make it convenient for mobile or stationary inspection work.

Q: What makes the gauge durable and suitable for harsh environments?

A: Constructed from corrosion-resistant stainless steel with a satin or brushed finish and enclosed in a stainless steel case, the gauge withstands rigorous use. The laser-engraved graduations ensure that markings remain intact for years, even with heavy usage.

Q: How does the packaging contribute to the gauge's longevity?

A: Each gauge is individually packed in a stainless steel pocket case, protecting it from damage, exposure, or loss, thereby extending its operational life and ensuring its accuracy is preserved over time.
