PIPE PIT GAUGE

Name: PIPE PIT GAUGE
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 1900.0 INR
Availability: InStock

Price 1900.0 INR/ Piece

Get a Price/Quote

MOQ : 3 Pieces

PIPE PIT GAUGE Specification

Outer Size
160 mm (Length) x 25 mm (Width)

Measuring Range
0-20 mm (Depth Measurement)

Sensor Type
Manual (No Sensor)

Display
Analog Scale

Case
Stainless Steel Carrying Case

Material
Stainless Steel

Grade
Industrial

Application
Measuring pit depth and metal loss on pipes due to corrosion

Accuracy
0.1 mm

Scale Graduation
0.1 mm

Finish
Satin Chrome Plated

Blade Length
100 mm

Standard
Conforms to Industry Standards

Weight
Approx 100 g

Markings
Etched Graduations

Usage
For Inspection in Pipeline Maintenance

Type
Pocket Type Tool

PIPE PIT GAUGE Trade Information

Minimum Order Quantity
3 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About PIPE PIT GAUGE

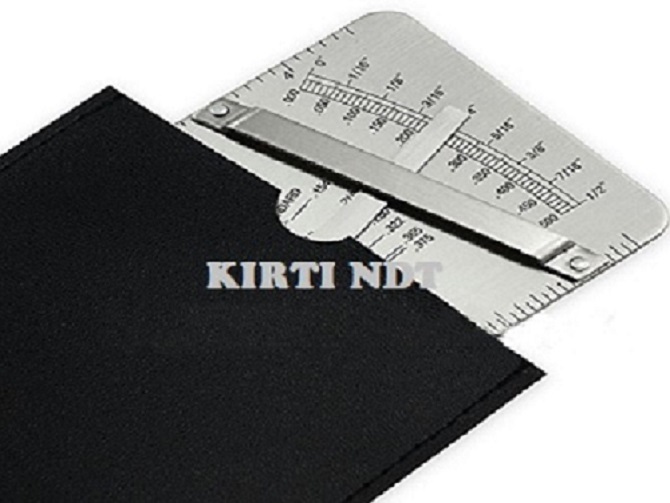

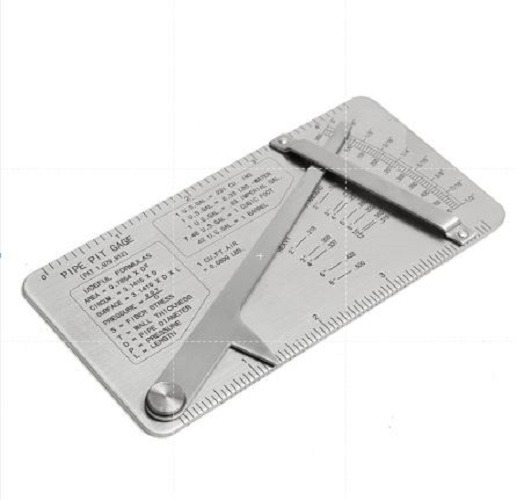

Another professional tools for welding inspection. The indicator arm has a stylus which fits into the pits of pipe being measured. The scale on the right of the guide is shown as an arc and is expressed in both sixteenths of an inch and millimeters. Each one comes comes with its own vinyl case and can be easily carried in ones pocket. It will serve as a constant guide for judging the condition of pipe.

Description

Features:

? Range is 0 to 1/2 in 1/64 & .010 Increments Arm Can be Locked in Place at Any

? Arm Can be Locked in Place at Any Dimension

? All Stainless Steel

? Gage Will Fit in Shirt Pocket & Comes in a Pocket Protector

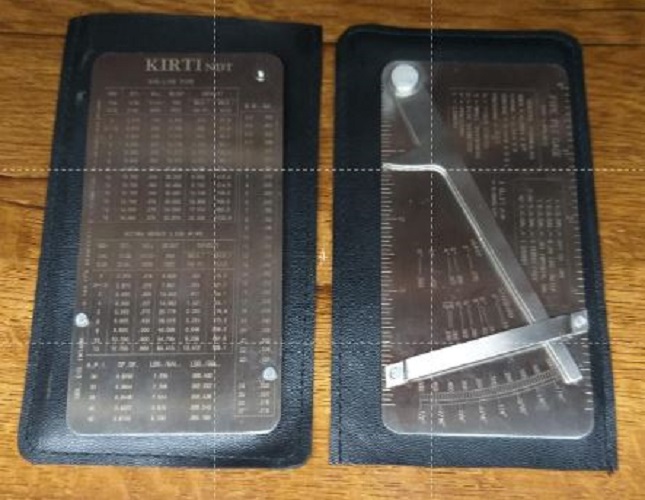

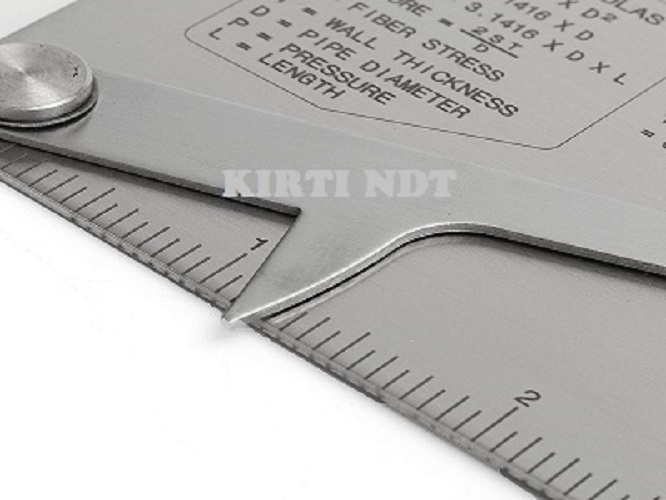

? Has Handy Formulas on Front & Decimal Equivalents on Back

Precision Engineering for Reliable Measurements

Engineered for accuracy, the Pipe Pit Gauge features etched graduations with 0.1 mm precision, enabling meticulous depth measurement of pits and metal loss on pipelines. This ensures reliable data for maintenance decisions, critical in industrial environments where precision matters.

Durable Construction for Field Use

Manufactured from robust stainless steel and finished with satin chrome plating, this tool offers long-lasting performance in harsh maintenance settings. The sturdy stainless steel carrying case protects the gauge, making it ideal for frequent use on-site during pipeline inspection and repair.

Versatile Application and Ease of Use

This pocket-type gauge is designed for quick, manual operation without the need for sensors or batteries. Its compact size, etched markings, and analog display ensure easy pit depth assessment, supporting pipeline professionals in corrosion monitoring and maintenance tasks.

FAQ's of PIPE PIT GAUGE:

Q: How is the Pipe Pit Gauge used during pipeline inspection?

A: To use the Pipe Pit Gauge, place its blade over the area of metal loss or corrosion pit on the pipe surface. Lower the measuring tip into the pit, and read the depth directly from the analog graduated scale marked in 0.1 mm increments.

Q: What are the key benefits of the satin chrome-plated finish on this gauge?

A: The satin chrome-plated finish not only enhances the gauge's resistance to corrosion but also minimizes reflected glare, making the etched graduations easier to read even in bright outdoor conditions.

Q: When should I use a Pipe Pit Gauge in pipeline maintenance?

A: Use the Pipe Pit Gauge during routine inspection or maintenance intervals to measure the depth of corrosion pits and assess metal loss, which helps determine the pipe's condition and the urgency of repairs.

Q: Where is this Pipe Pit Gauge most effectively applied?

A: This gauge is most effective in field inspections of pipelines, particularly for industries involved in oil, gas, water, and industrial pipeline operations, wherever corrosion monitoring is required.

Q: What is the process for ensuring measurement accuracy with this tool?

A: Ensure both the gauge blade and pipe surface are clean before each measurement. Position the blade securely on the flat pipe surface, align the reference edge, and carefully lower the measuring tip into each pit. Read the depth directly from the analog scale.

Q: Can the gauge be carried conveniently for onsite inspections?

A: Yes, the gauge's lightweight (approx. 100 g) pocket-sized design and stainless steel carrying case make it highly portable and well-suited for regular onsite use by maintenance teams.

Q: What are the advantages of etched graduations and analog display?

A: Etched graduations provide long-lasting, wear-resistant markings for accurate readings, while the analog display simplifies measurement without the bias or limitations of electronic sensors.
