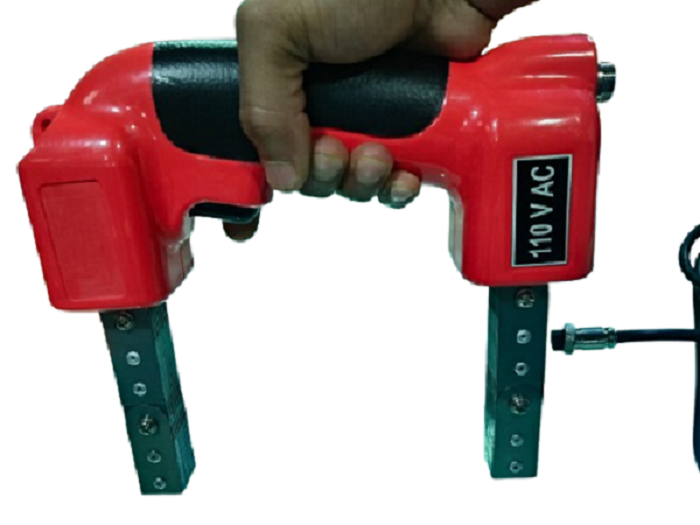

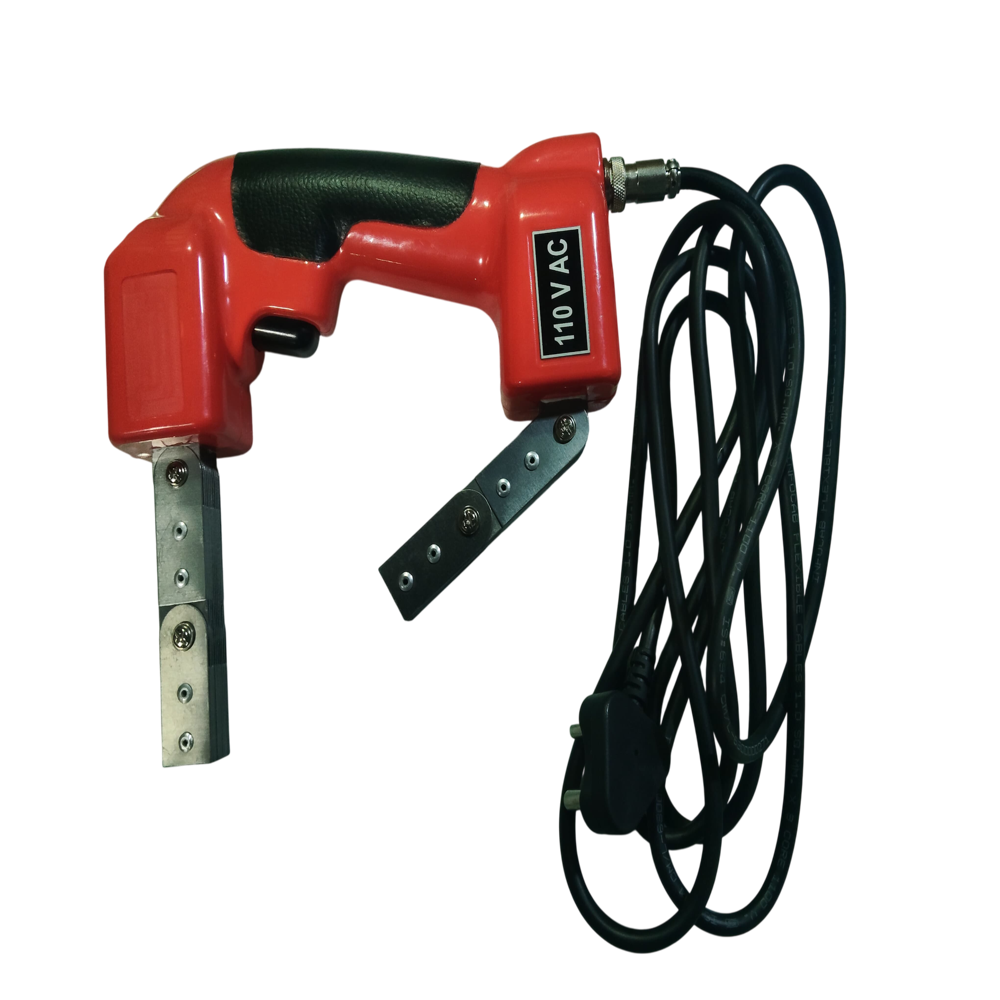

110V ELECTROMAGNETIC AC YOKE

Name: 110V ELECTROMAGNETIC AC YOKE
Brand: KIRTI NDT AND ENGINEERING SERVICES
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

110V ELECTROMAGNETIC AC YOKE Specification

Composite
Electromagnetic Yoke

Application
Magnetic Particle Inspection (MPI), Crack Detection

Voltage
110V AC

Power Supply
Electric

Power
Approx. 60-100W

Frequency
50/60 Hz

Magnet Grade
High performance, Industrial grade

Surface Finish
Smooth, corrosion-resistant

Material
High strength polymer housing and steel legs

Product Type
Portable Non-Destructive Testing Device

Magnet Category
AC Yoke

Magnet Type
Electromagnetic

Shape
U-Shaped Yoke

Size Range
210mm to 260mm (adjustable leg span)

Weight
2.8 kg (approx.)

Color
Red and Black

Usage & Applications
Surface crack detection, weld inspection, steel structure checking

Capacity
Lifting Capacity: up to 20 kg

Operating Temperature
-5C to 45C

Accessories
Carrying case, user manual, spare parts (optional)

Leg Adjustment
Flexible, pivoted legs for irregular surfaces

Cable Length
2-3 meters (approx.)

Handle Grip
Ergonomic, non-slip rubberized

Connector
Standard industrial AC plug

Insulation Class
Class B or better

Duty Cycle
Continuous, designed for field and lab use

Control
Single push button trigger

110V ELECTROMAGNETIC AC YOKE About

The 110 AC Electromagnetic Yoke is a vital tool for conducting non-destructive testing, specifically designed for magnetic particle inspection (MPI). It uses alternating current to generate a magnetic field, which is ideal for detecting surface flaws in ferromagnetic materials. The yoke is lightweight, compact, and portable, making it easy for technicians to carry out inspections in various industrial settings such as pipelines, machinery, and metal structures

Description and Key Features:

Voltage: Operates on 110 AC power, usually via a standard wall outlet or site transformer.

Magnetic Field: Produces a strong AC magnetic field, which is ideal for detecting surface & surface level flaws.

Lifting Power: Capable of lifting significant weight (e.g., 4.5kg to 5kg+) to meet inspection standards like ASTM E709/E1444.

Design: Ergonomic Handle, handheld, and robust for harsh, field-testing environments.

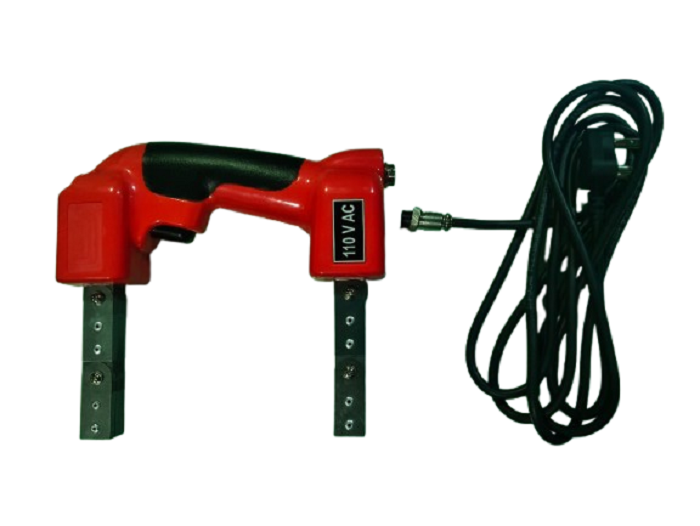

Comes With Detachable cable.

Purpose: Used to magnetize parts for finding surface defects, allowing for application of dry powder or wet visible particles.

Benefits

Increase inspector productivity and reduce physical fatigue

Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.

Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.

Reliable Surface Crack Detection

Designed specifically for Magnetic Particle Inspection (MPI), this electromagnetic AC yoke excels in detecting surface cracks and imperfections. Its high-strength polymer body and corrosion-resistant steel legs ensure durability for frequent industrial use, making it an excellent choice for weld and steel structure inspections.

Flexible Use in Diverse Conditions

With a flexible, pivoted leg design and an adjustable leg span of 210mm to 260mm, this yoke effortlessly adapts to flat and irregular surfaces. The ergonomic, non-slip rubberized grip ensures comfortable operation, whether used onsite or in a laboratory. Continuous duty cycle supports extended inspection sessions.

Comprehensive Accessory Support

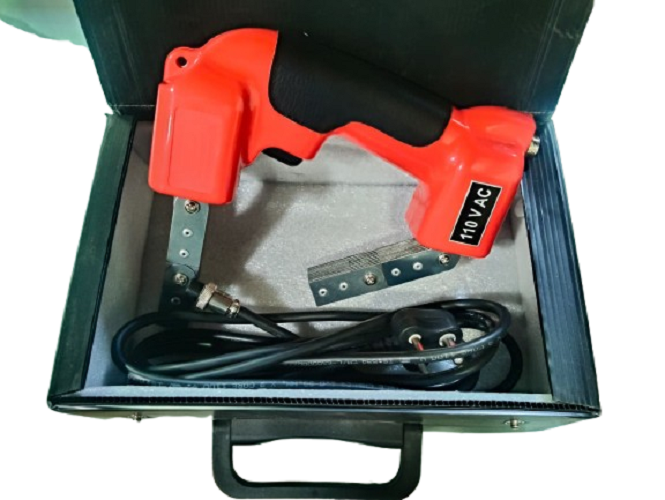

Every kit includes a sturdy carrying case, a detailed user manual, and the option for spare parts. The standard industrial AC plug and a 2-3 meter cable provide ample mobility, ensuring users can easily deploy this tool in various operational settings without hassle.

FAQ's of 110V ELECTROMAGNETIC AC YOKE:

Q: How is the 110V Electromagnetic AC Yoke operated during Magnetic Particle Inspection?

A: Operation is straightforward: connect the standard industrial AC plug, position the flexible, pivoted legs on the inspection surface, and use the single push button trigger to energize the yoke. Sprinkling magnetic particles on the area highlights surface cracks as the yoke generates an AC magnetic field.

Q: What surfaces and environments can the AC Yoke be used on?

A: Its adjustable leg span (210mm to 260mm) and flexible, pivoted legs enable effective inspection of both flat and irregular surfaces. The yoke is suitable for use in varied field and lab environments, withstanding ambient temperatures from -5C to 45C.

Q: When should I choose this electromagnetic yoke over other methods?

A: Opt for this yoke when high-sensitivity detection of surface cracks or weld flaws in ferromagnetic materials is required, especially where flexibility and mobility are important-such as fieldwork, steel structure assessments, or routine maintenance tasks.

Q: Where can the device be applied for best results?

A: Ideal for weld inspection, steel structure checking, pipeline maintenance, and quality control. The robust design allows for usage both in laboratories and onsite industrial locations, particularly on equipment and components requiring non-destructive testing.

Q: What is the process for crack detection using this AC yoke?

A: Place the yoke's legs on the test surface, trigger the magnetic field, and apply magnetic particles. Cracks or surface defects will attract the particles, making them visible and allowing for quick evaluation of structural integrity.

Q: What are the key benefits of this electromagnetic yoke for industrial applications?

A: The yoke's high lifting capacity, durable construction, ergonomic design, and continuous operation capability provide efficiency and reliability in industrial and lab settings, ensuring comprehensive detection and user comfort during extended inspections.
